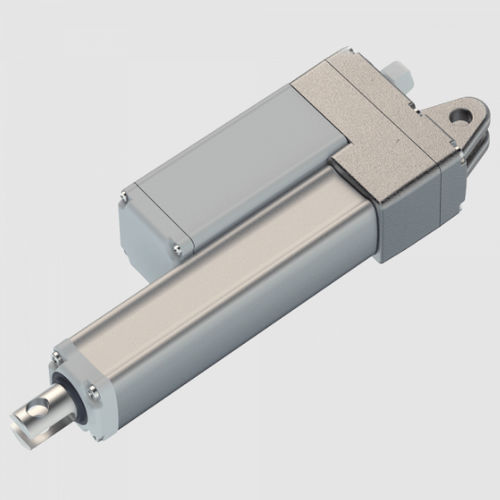

Electric actuator AOP-1/Mlinearstainless steelaluminum
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Material
- stainless steel, aluminum
- Motor
- DC
- Voltage
- 24-volt, 12-volt, 36 V
- Protection class
- IP69K, IP44
- Other characteristics
- compact, integrated
- Stroke
Min.: 50 mm
(1.969 in)Max.: 300 mm
(11.811 in)- Force
200 N, 300 N, 500 N, 750 N, 1,000 N
- Speed
6 mm/s, 12 mm/s, 16 mm/s, 20 mm/s, 40 mm/s
- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
Integrated end-stroke limit switches.
Up to 1.000N.
Extra slim dimension
Full metal body
Multiple Gearing solutions
Integrated end-stroke limit switches
Duty cycle
S3 10% based on 10 min.
• Anti rotation
• Customizable stroke and retracted length
• Various rear attachments available (0° and 90°)
