Modular fixture system UniGrid®

positioning

Product overview

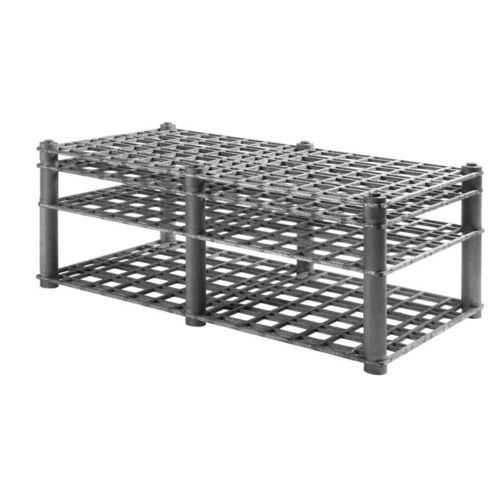

With UniGrid®, standardized solutions for CFC grids are offered in addition to customized charge carriers. Unlike machined or water jet-cut grids, these grids are manufactured in a single, separate process and feature a continuous fiber structure with no joints. The closed frame structure enables easy, uncomplicated handling while providing a high degree of rigidity and strength.

You benefit from these advantages:

• Many options for positioning graphite posts
• Maximum flexibility in grid loading
• Self-centering posts for easy mounting and alignment
• Stackable for optimized storage and multi-level assemblies
• High stability suitable for multi-level structures

Characteristics / technical specifications

• Product name: UniGrid®
• Product type: Modular fixture system for CFC grids
• Material: CFC (carbon-fiber-reinforced carbon) — designed for graphite applications
• Manufacturing: Integral one-piece manufacturing preserving continuous fiber structure
• Construction: No joints in the grid, closed frame for simplified handling
• Mechanical properties: High rigidity and strength
• Assembly: Self-centering posts, easy to mount and align
• Flexibility: Multiple positioning options for graphite posts and flexible loading schemes
• Logistics: Stackable design for efficient storage and multi-level configurations
