Grounding device

Product overview
Automotive manufacturers face capacitive interference currents originating from rotor shafts in electric drives. These currents can cause bearing and gear damage as well as broadband radio interference. This shaft grounding assembly provides targeted protection against bearing damage while damping interference emitted from the shaft up to approximately 50 MHz.

You benefit from these advantages

• Schunk quality for future e‑mobility applications
• Precisely matched metal‑graphite contact material
• Effective prevention of bearing and gear damage and reduction of high‑frequency interference in electric vehicles
• Suitable for all vehicle electric drive units

Applications
Protection of bearings and gears in automotive electric drive units; damping of interference signals emitted from rotor shafts up to approx. 50 MHz.

Additional information
Offered as shaft grounding assemblies for automotive electric powertrains; product imagery and multimedia (including a product video) accompany the product entry.

Characteristics / technical specifications

• Function: Shaft grounding to divert and damp capacitive interference currents from rotor shafts
• Targeted protection: Prevention of bearing and gear damage; reduction of broadband radio interference
• Frequency damping range: up to approximately 50 MHz
• Material: matched metal‑graphite contact material
• Application domain: electric drive units in vehicles (automotive)

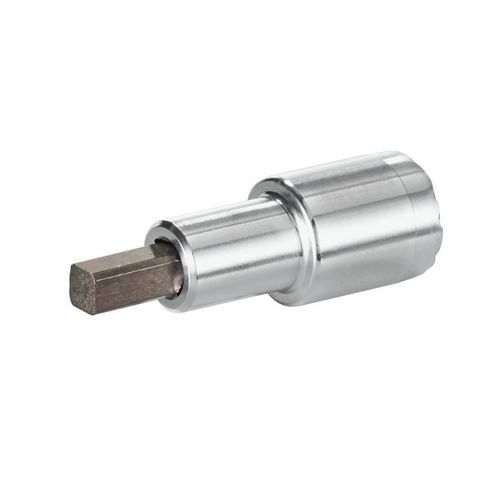

• Design variants: axial and radial grounding contact designs; versions with metal housing and contact pin or metal/plastic ring designs
