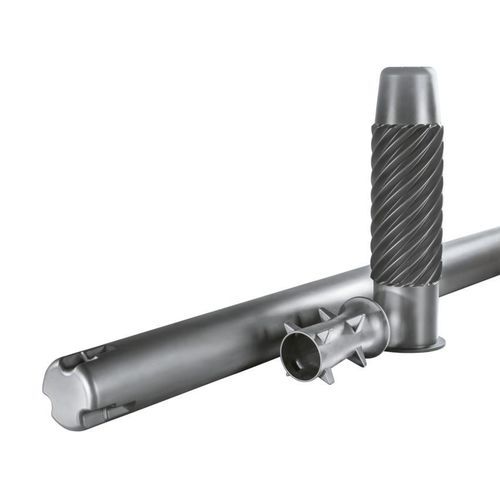

Silicon carbide tube

high-temperatureheatingfor industrial applications

Product description
Our radiant tubes for indirect heating are developed for demanding thermal process applications. Tubes manufactured in CarSIK (silicon-infiltrated, reaction-bonded silicon carbide) and in 3D-printed IntrinSiC® (RBSiC) offer long-term dimensional stability, high thermal conductivity and reliable performance in sensitive industrial processes. Large diameters and lengths (Ø ≥ 200 mm, L ≥ 3000 mm) are available on request to increase heat-exchange surface and to support adequate circulation rates that help reduce NOx emissions.

Manufacturing and shapes
In addition to conventionally formed single-ended tubes we supply U- and P-shaped configurations. For complex internal geometries we offer IntrinSiC® produced by additive manufacturing, enabling features such as inner spiral contours that are not feasible with conventional forming methods.

You benefit from these advantages

• Available grades: CarSIK-G and IntrinSiC® (3D-printed RBSiC)
• High bending strength and creep resistance
• Excellent oxidation and corrosion resistance
• Very good thermal shock resistance
• High net-heating efficiency due to elevated thermal conductivity
• Large-size availability for single-ended, U- and P-shaped tubes in RBSiC
• Optional tailor-made flange designs; isostatically pressed grade for high surface quality
• Design flexibility (e.g. inner spiral contours) enabled by 3D-printed IntrinSiC®

Technical characteristics / specifications

• Materials / grades: CarSIK (silicon-infiltrated RBSiC), IntrinSiC® (3D-printed RBSiC)
• Typical shapes: single-ended, U-shaped, P-shaped
• Size capability: diameters ≥ 200 mm and lengths ≥ 3000 mm available on request
• Mechanical properties: high bending strength and creep resistance
• Chemical resistance: excellent oxidation and corrosion resistance
• Thermal properties: very good thermal shock resistance and high thermal conductivity → high net-heating efficiency
• Manufacturing options: conventional forming, isostatically pressed grade for high-quality flanges, additive manufacturing for complex internal geometries (e.g. inner spiral contours)
