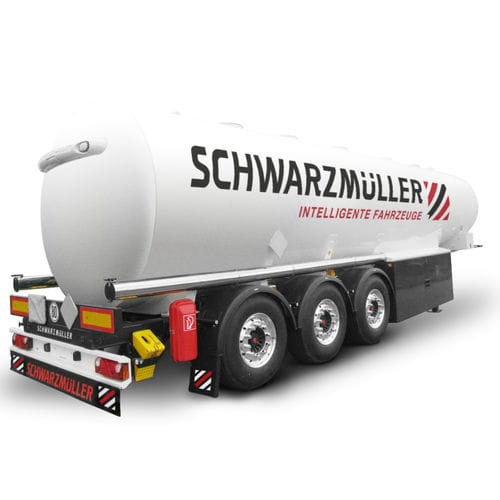

Semi-tanker semi-trailer

for fuel3-axletowed

3-axle aluminium tank semitrailer with electronic dipsticks • Sophisticated design with perfect functionality • Optimum driving stability thanks to low centre of gravity • Extremely light and flexible product discharge hoses (3" or 4") suitable for pump or gravity operation • Highest product purity thanks to optimum drainage based on unique double-wedge construction • Aluminium or stainless steel chassis • Hose storage facility integrated in chassis • Installation of axles from well-known manufacturers such as SAF or BPW • OPTIONAL: High-set LED light holder with optional integration of reversing camera • OPTIONAL: Fire extinguisher box with viewing window TYPE DESIGNATION 3-AXLE ALUMINIUM TANK SEMITRAILER, CYLINDRICAL With electronic dipstick measuring system, for mineral oil transport GENERAL Vehicle designation acc. to 9.1.1.2 ADR: FL Tank code acc. to 4.3.4.1 ADR: LGBF Special provisions acc. to 6.8.4 ADR: TE 7, TE 19 For transporting petrol UN 1203, diesel fuel and EL heating oil UN 1202 CHASSIS AND ATTACHMENTS Fifth-wheel plate with 2" kingpin GRP chassis frame with integrated hose boxes 2 support legs, height-adjustable and detachable when laden Aluminium box for printer at front right in direction of travel Single wheel plastic mudguards with mud flaps and spray-suppression system Aluminium underride protection Axles Air suspension unit with low-maintenance axles and disc brakes 3 x 9 t rigid, wheelbase 2 x 1,310 mm Suspension: Air suspension with lifting and lowering device. Automatic adjustment of driving level from 15 km/h Tyres 6 x 385/65 R 22.5 160J, manufacturer as per factory specifications 6 steel wheels, 11.75 x 22.5, 10-hole 120 mm rim offset
