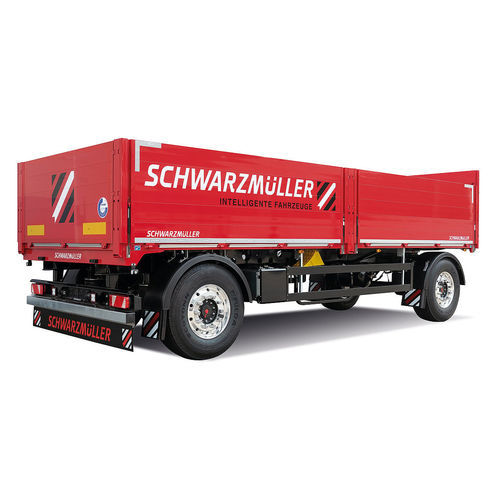

Platform trailer

constructioncement2-axle

2-axle platform trailer – building materials • Reinforced frame construction for 14 t point load over 3 m at centre of gravity • Fixed aluminium hollow profile front wall with 2 full-height centre supports • Aluminium hollow profile rear wall, internally riveted frame, foldable, with Kinnegrip double locking • Double floor consisting of subfloor with integrated steel omega profiles beneath resin-coated wear floor (stacker axle load: 5,460 kg) • Aluminium hollow profile side walls, 1,000/25 mm, with Kinnegrip double locking • Installation of axles from well-known manufacturers such as SAF or BPW • OPTIONAL: Smooth steel plate floor or steel stud plate floor, tack-welded to external frame • OPTIONAL: Perforated external frame with approx. 100 mm hole spacing, 50/30 mm slot, for securing 2 t per lashing point • OPTIONAL: Reinforced body with load securing certified according to DIN EN 12642 Code XL • OPTIONAL: Weather-resistant larch or hardwood floor, 40 mm, with top-hat profile over side members, without secondary floor • OPTIONAL: Cement cover consisting of roof arches inserted directly into the central and rear corner posts • OPTIONAL: Pull-out drawbar, max. 600 mm adjustment, with Getofix drawbar support WEIGHTS Gross weight (techn.): 18 t Tare weight: approx. 3. 6 t DIMENSIONS Internal platform length: approx. 7,100 mm Internal platform width: approx. 2,480 mm Total width: 2,550 mm Loading height, unladen approx. 1, 35 0 mm, clearance between tyres and frame at front approx. 13 0 mm FRAME Welded steel frame construction, reinforced for 14 t point load over 3 m at centre of mass
