Insulation tester MI20KVe
high-voltagebatteryportable

insulation tester
insulation tester
Add to favorites
Compare this product


Characteristics

Test type
high-voltage, insulation
Tested product
battery
Configuration
portable

Description

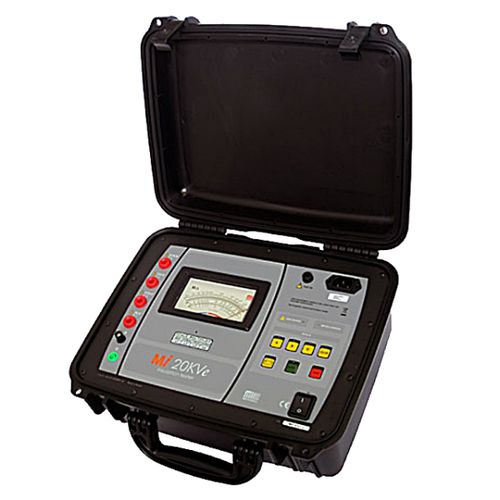

The MI-20KVe High-Voltage insulation tester is a truly portable device that allows the measurement of insulation resistances using test voltages up to 20 kV. It employs a state-of-the-art technology for the safe measurements of insulation resistances up to 4,000,000 MΩ with four test voltages: 5 kV - 10 kV - 15 kV and 20 kV. Analogue indicator, having a broad scale. Due to its reduced size and weight, its power autonomy and mechanical strength, this insulation tester is suitable for working out in the field, under severe weather conditions. It is powered with a rechargeable battery, with a charger for 110 V/220 V. In order to protect the equipment, the cabinet is water and dust resistant. Protection grade is IP54, and the insulation tester is supplied with a complete kit of high voltage test leads. FEATURES • Insulation test up to: 4 TΩ • 4 Test voltages: 5 kV - 10 kV - 15 kV - 20 kV • Guard terminal • Rechargeable battery • Multiple scales for precision improvement • Portable, accurate & rugged • IP-54 Protection
