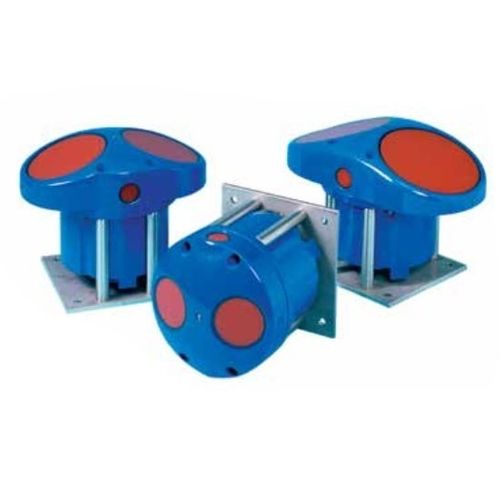

High-precision speed sensor ChannelMaster ADCP

high-resolutionrobust

Accurate: Teledyne RDI Broadband technology allows for small cells and/or short averaging sampling intervals, thus increasing your data accuracy. Robust: Collect highly accurate velocities even in difficult environments such as slow flow or rapidly changing flow. Versatile: ChannelMaster offers a range of 1-128 user-selectable cell sizes from 25 cm - 8 m and profiling ranges from 1 m - 300 m (frequency dependent). Sturdy: Comes standard with stainless steel mounting fixture. SDI-12 interface for connection to existing data loggers or remote data transmission systems Benefits All-in-one ADCP system for high-resolution and precise velocity profiling from 1 m to 30 0m ranges including an integrated ultrasonic vertical beam and a redundant pressure sensor for stage measurement Water level, flow velocity and discharge output via RS 232 interface (SDI-12 protocol) for connection to an external data logger (e.g. SEBA-NetlogCom) User-friendly software for site configuration (input of the cross-section, correction factors,… etc.) Robust and flexible bracket for easy installation and alignment of the ChannelMaster is optionally available with additional protection fixture Relatively low installation effort and expenditure, since the ChannelMaster is installed on only one side of the river/channel. discharge, velocity and water level measurements in rivers, streams and canals Measurement of complex currents for environmental monitoring Calibration of numerical models or verifications
