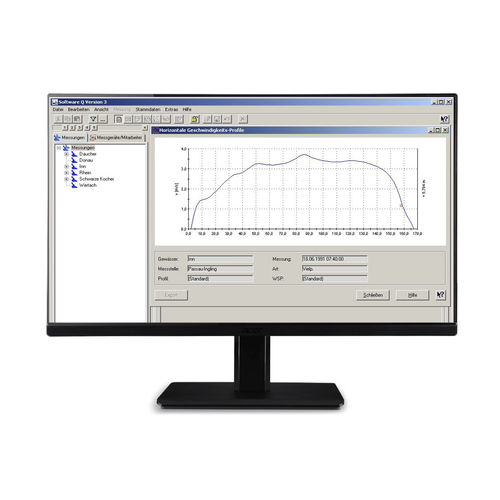

Data acquisition software Q 4

backupassessmentWindows

Standard software (Windows) of the German Federal Institute of Hydrology (Bundesanstalt für Gewässerkunde, BfG) and the Water and Shipping Authorities for Evaluation of Mobile Flow Measurement in accordance with ISO748 and Gauging Regulations, Annex D Relational database management system (SQL interface, easy data search and data backup, redundancy-free storage) Data management for measuring instruments (e.g. M1 Mini vanes, Universal Wing F1) and calibration equations Creation of measurement reports Supported measurement methods: single-point measurement, two-point measurement, multi-point measurement Modularly expandable (Pro-module, module vane etc.) Benefits Software Q, Version 4 Base Module: The APP allows the acquisition, management and analysis of flow rates using Windows. The technical basis of the program is provided by the gauging regulation, Annex D. The determination of the flow rate (Q) must be executed applying the surface speed method, which is customary in the hydrological practice. Considering the device-specific parameters, the total flow can be evaluated immediately after the data acquisition. The convenient user interface provides the user with a variety of applications for water analysis. From the available data, vertical velocity profiles and isotachs are calculated and illustrated in graphs. Faulty measurements are thus recognised early on and they can be corrected immediately or discarded.
