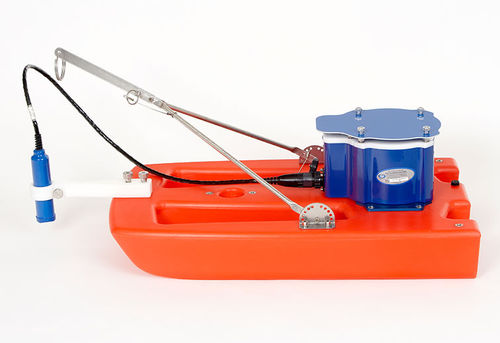

Doppler ultrasonic flow meter StreamPro ADCP

acousticfor waterportable

2 MHz broadband ADCP sensor incl. equipment rack for mobile flow measurement Moving boat method Fast and accurate throughput measurements Wireless communication via Bluetooth transmission to a tablet PC or notebook Efficient, accurate, high resolution: Owing to the moving boat method, StreamPro can be guided through the measurement section by a rope or a rubber dinghy, etc.. Hereby, the ADCP sensor measures the average flow velocity in different depth cells and water depths. Unlike the point measurement method or verticals procedure, discharge measurement is performed not only in a fraction of the time but also with a very high accuracy and resolution of the flow profile. Versatile: The StreamPro can be used in very shallow waters from about 0.1-2 m. There is the option of extending the measuring range to 6 m. Mobile flow measurements at low to moderate suspended matter concentrations and flow rates of up to 2 m/s (standard equipment rack) pose no problems for the StreamPro. User-friendly: The StreamPro configures itself automatically, so the user can immediately start the measurement by entering the water depth and the distance from the shore. With the help of the supplied Software WinRiver II all relevant information (flow profile, current flow, etc.) are provided to the user in a clear form. Modular: Other useful extensions for StreamPro are available to the user immediately or, if necessary, at a later date: Section-by-Section, measuring range extension (up to 6 m), compass upgrade, high-speed equipment rack StreamProSP (trimaran) for flow rates up to 3.5 m/s.
