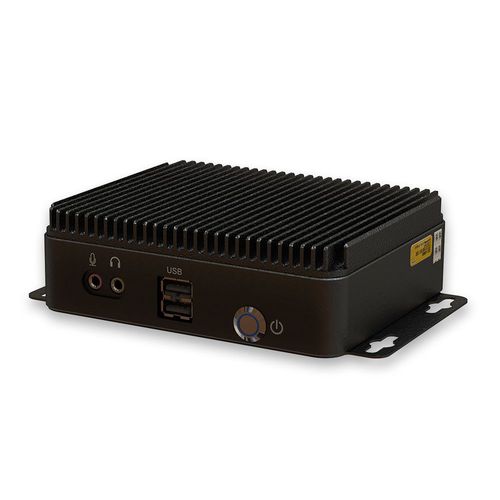

GPU computer Titan 230 APL

embeddedintel® celeron® N3350Intel® Celeron® J3455

Fanless Embedded Computer with Intel® Celeron® J / N Series and Intel® Pentium® N Series (codename: Apollo Lake) Processors Graphics Integrated Intel® HD Graphics 505 or 500 series controller, with up to 18 Execution Units 4K HW decoding and encoding of HEVC(H.265), H.264, VP8, SVC, MVC Dual independent display Video Interfaces Two multimode Display Port on miniDP++ connectors Video Resolution - Up to 4096 x 2160 Audio Internal HD Audio codec Cirrus Logic CS4207 Mic In and Line Out Audio jacks Other Interfaces - Power Button Power On Status LED OPTIONAL ACCESSORIES: miniDP++ to HDMI adapter Customised bracket for VESA panel mount Power Supply - DC Power jack with cable restraint,type DC-062-4-2.5-S214 +18VDC ÷ +32VDC recommended +15VDC ÷ +36VDC absolute Min power required, 40W Available on request: Yocto (64-bit) Operating Temperature - 0°C ÷ +60°C (in presence of air flow) *Environment temperature measured near the heatsink's fins. Upon customer to verify that the temperature remains within the admissible range. Dimensions - 162.3 x 109.3 x 42.4 mm
