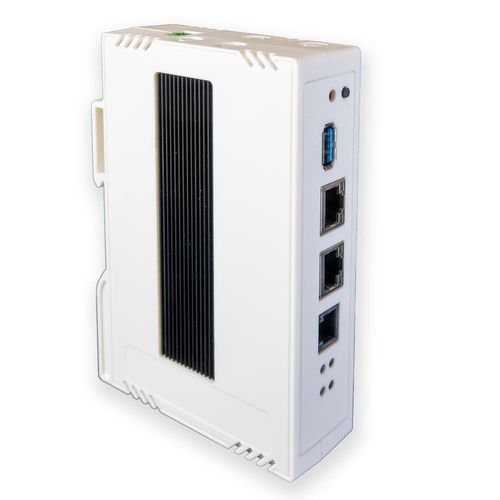

Communication gateway PN Modular Link IQ-615

securityindustrialIoT

Overview
DIN-mount industrial gateway based on the Qualcomm® IQ-615 SoC, designed for secure edge computing and industrial connectivity.

Highlights

• CPU Qualcomm® IQ-615 — 64-bit SMT octa-core Kryo 4 (2×1.9 GHz + 6×1.6 GHz)
• Graphics Qualcomm® Adreno™ 612, 845 MHz
• Memory 4 GB LPDDR4X RAM
• Networking 2× 10/100 Ethernet

Security & Software

• Secure Boot Built-in Secure Boot to ensure system integrity from first startup
• TPM TPM 2.0 hardware security module
• OTA Updates Remote and secure firmware/software distribution
• Device Monitoring Continuous monitoring of device status and activity
• Operating System SECO Clea OS (Yocto-based) for customizable, embedded Linux builds
• Containerization Docker-based application isolation and deployment
• Compliance Certified security compliance with EN18031-1

Additional Features

• Optional HDMI® interface on MiniHDMI® connector; video up to 1080p @60Hz
• Mass storage: 32 GB eMMC
• USB: 1× USB 3.1 Type-A (front panel); 1× USB Micro-AB for debug
• Serial: 1× RS485 on RJ11 (front panel)
• Other interfaces: 4× LEDs; 1× user-defined button; 1× reset button; RTC; JTAG
• Power supply: 24 VDC (<20 W)
• Operating temperature: -40°C to +80°C
• Dimensions: 140 × 96 × 36 mm

Technical specifications

• Model Modular Link IQ-615
• Description DIN-mount industrial gateway with Qualcomm® IQ-615 SoC
• CPU Qualcomm® IQ-615 — 64-bit SMT; Octa-core Kryo 4 (2×1.9 GHz; 6×1.6 GHz)
• Memory 4 GB LPDDR4X
• Graphics Qualcomm® Adreno™ 612 @ 845 MHz
• Storage 32 GB eMMC
• Video Optional MiniHDMI® — up to 1080p @60Hz
• Ethernet 2× 10/100
• USB 1× USB 3.1 Type-A (front); 1× USB Micro-AB (debug)
• Serial 1× RS485 on RJ11 (front)
• Security TPM 2.0; Secure Boot; EN18031-1 compliance
• Power 24 VDC (<20 W)
• OS SECO Clea OS (Yocto)
• Operating temp. -40°C to +80°C
• Dimensions 140 × 96 × 36 mm
