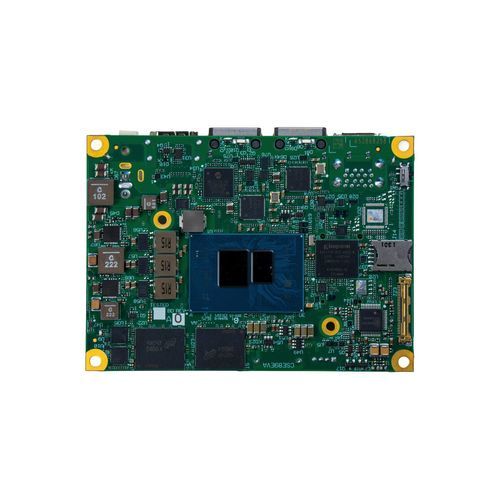

Pico-ITX single-board computer PN-SBC-pITX-TWL

Intel® Processor N-seriesIntel® Processor N150Intel® Processor N250

Overview
Pico-ITX single-board computer for edge applications, based on the Intel® Atom™ "Twin Lake" Embedded PC Client N‑Series. Compact 100 x 72 mm form factor providing low-power compute and rich I/O for embedded and industrial solutions.

Security & Compliance

• Secure Boot to ensure platform integrity from first startup.
• OTA updates and automated patching for remote maintenance.
• Device monitoring and lifecycle management via Clea integration.
• Certified compliance with EN18031-1 for secure embedded systems.

Key features

• CPU options: Intel® Processor N150, N250, N355 (Quad Core, various TDP profiles).
• Memory: LPDDR5-5200 soldered, up to 16 GB with IBECC support.
• Graphics: Integrated Intel® Xe (24–32 EUs) with AVX256 & VNNI; 3D APIs: DirectX 12.1, OpenGL 4.6, Vulkan 1.2; 4K60 HW decode/encode for major codecs (AV1 decode only).
• Video interfaces: eDP 1.4b, single/dual-channel LVDS (18/24-bit), HDMI 1.4b.
• Storage: optional onboard eMMC 5.1 (up to 128 GB), 1x SATA Gen3 connector, 1x M.2 SATA (Socket 2, Key B) for SSDs.
• Networking: up to 2x 2.5GbE (RJ45), M.2 slots for Wi‑Fi/BT (Key E) and WWAN (Key B) with Nano‑SIM.
• USB & audio: 2x SuperSpeed USB 10 Gbps Type‑A, 3x USB 2.0 internal headers; HD audio codec with S/PDIF Out and Mic In headers.
• I/O expandability: serial (RS‑232/RS‑422/RS‑485) headers, 2x I2C, 1x SPI, 8x GPIO, optional TPM 1.2/2.0, onboard FAN connector and front panel signals.

Power, OS & manageability

• Power input: 12 VDC cabled; coin cell for RTC.
• Supported OS: Microsoft® Windows 11 IoT Enterprise LTSC; Yocto-based Clea / Edgehog OS options for secure embedded builds.
• Management: Secure OTA updates, device monitoring and container-friendly runtime (Docker).

Environment & dimensions

• Operating temperature (commercial): 0°C to +60°C.
• Dimensions: 100 x 72 mm.

Resources & part number

• Datasheet and product images available.
• Part number: PN-SBC-pITX-TWL.
