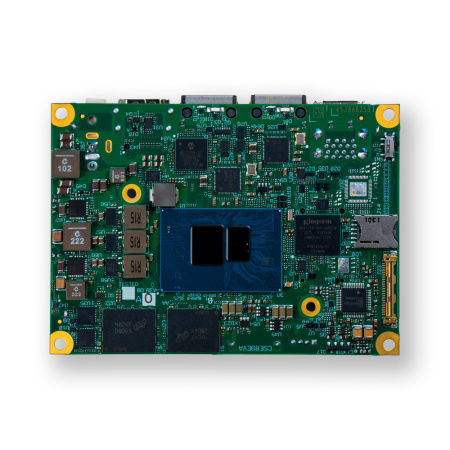

Pico-ITX single-board computer PN SBC-pITX-ASL

Intel® AtomSATA3M.2 Key E

Overview
Pico-ITX single board computer SBC-pITX-ASL based on the Intel® Atom™ Amston Lake Industrial RE Series, designed for secure edge and industrial deployments. Compact 100 x 72 mm form factor with commercial and industrial temperature options and support for Windows 11 IoT Enterprise LTSC and Yocto-based images.

Highlights

• CPU Intel® Atom™ Amston Lake Industrial RE Series (x7211RE, x7213RE, x7433RE, x7835RE)
• Graphics Integrated Intel® Gen12 UHD (Intel® Xe) — up to 32 EU; up to 2 independent displays (LVDS/eDP + HDMI); 4K60 HW decode/encode for HEVC/AVC/VP9/SCC, AV1 decode
• Memory LPDDR5-5200 soldered, up to 16 GB, IBECC support
• Connectivity Up to 2x 2.5GbE, M.2 E-Key (Wi‑Fi+BT), M.2 B-Key (WWAN) with Nano-SIM; SATA Gen3 and M.2 storage options

Security & Software Features

• Secure Boot Built-in Secure Boot for platform integrity
• OTA Updates Secure remote firmware and software updates
• Device Monitoring Continuous monitoring and remote management support
• Secure OS Yocto-based integration (Clea OS available) and Windows 11 IoT Enterprise LTSC support
• Certified Security Designed to facilitate compliance with EN18031-1
• Containerization Support for Docker containers for isolated application deployment

Technical specifications

• Form factor Pico-ITX (100 x 72 mm)
• CPU options x7211RE (dual 1.0 GHz, 6 W), x7213RE (dual 2.0 GHz, 9 W), x7433RE (quad 1.5 GHz, 9 W), x7835RE (octa 1.3 GHz, 12 W)
• Memory LPDDR5-5200 up to 16 GB, IBECC
• Video eDP 1.4b or single/dual LVDS; HDMI 1.4b; resolutions up to eDP 4096x2304, HDMI up to 3840x2160 (20–30 Hz)
• Storage Optional eMMC 5.1 up to 128 GB; 1x SATA Gen3; 1x M.2 SATA (Key B, 2242/3042/3052/2260)
• Networking Up to 2x 2.5GbE (RJ45), M.2 Key E (Wi‑Fi/BT), M.2 Key B (WWAN) with Nano-SIM
• USB 2x USB 3.2 Gen2 (10 Gbps) Type-A, 3x USB 2.0 internal headers
• Audio & Serial HD audio codec, S/PDIF out, Mic In; 2x serial (RS-232/422/485) headers
• I/O I2C, SPI, 8x GPIO, optional TPM 1.2/2.0, FAN connector, front-panel signals
• Power 12 V DC cabled; RTC coin cell
• OS Windows 11 IoT Enterprise LTSC, Clea OS / Yocto
• Temperature Commercial 0°C to +60°C; Industrial -40°C to +85°C

Recommended applications

• Edge computing and secure gateways
• Industrial HMI and panel integration
• Machine vision and inference at the edge
• M2M and vehicular / mobile WWAN solutions
