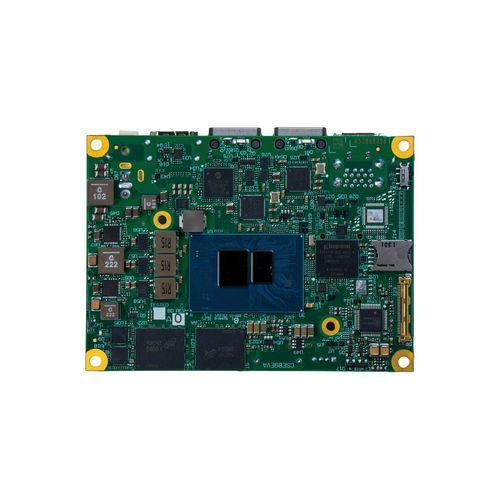

Pico-ITX single-board computer PN SBC-pITX-ADL-N

Intel® Alder Lake-NSATA3M.2

Overview
Pico-ITX single-board computer designed for edge applications, based on the Intel® Atom™ Processor "Alder Lake N" Embedded PC Client N Series. Compact 100 x 72 mm form factor with LPDDR5 memory and advanced multimedia and connectivity options.

Highlights

• CPU: Intel® Atom™ Processor "Alder Lake N" Embedded PC Client N Series (multiple SKU options: N50, N97, N200, i3-N305)
• Graphics: Up to 2 independent displays (LVDS/eDP + HDMI); Intel® Gen12 UHD (Intel® Xe) up to 32 EUs; 4K60 HW decode/encode (HEVC/H.265, AVC/H.264, VP9, SCC), AV1 decode only
• Memory: LPDDR5-5200 soldered down, up to 16 GB, IBECC support
• Connectivity: Up to 2x 2.5GbE, M.2 E-Key (Wi‑Fi+BT), M.2 B-Key (WWAN) with Nano‑SIM support

Security & Software Features

• Secure Boot integrated to ensure system integrity from first startup
• OTA updates for secure remote software distribution
• Device monitoring for continuous status and activity reporting
• Yocto-based secure OS integration; supported images: Microsoft® Windows 11 IoT Enterprise LTSC, Edgehog OS
• Docker container support for isolated application deployment
• Certified security compliance with EN18031-1

Technical specifications

• Form factor: Pico-ITX, 100 x 72 mm
• CPU options: N50 (Dual Core 1.0 GHz / Turbo 3.4 GHz, 6W), N97 (Quad Core 2.0 GHz / Turbo 3.6 GHz, 12W), N200 (Quad Core 1.0 GHz / Turbo 3.7 GHz, 6W), i3-N305 (8 Core 1.0 / 1.8 GHz, Turbo 3.8 GHz, 9W/15W)
• Memory: LPDDR5-5200 soldered, up to 16 GB, IBECC
• Video: eDP 1.4b or single/dual channel LVDS 18/24-bit; HDMI 1.4b; resolutions up to eDP 4096x2304, HDMI up to 3840x2160 @20–30Hz, LVDS up to 1920x1080
• Storage: Optional eMMC 5.1 up to 128 GB; 1x SATA Gen3 (7p M connector + 4p power); 1x M.2 SATA (Socket 2, B-Key, 2242/3042/3052/2260)
• Networking: Up to 2x 2.5GbE (RJ45); M.2 Wi‑Fi/BT (E-Key 2230); M.2 WWAN (B-Key) with Nano‑SIM
• I/O: 2x USB 3.1 Gen2 (10 Gbps) Type-A; 3x USB 2.0 headers; 2x serial ports (RS-232/RS-422/RS-485) on header; audio codec with S/PDIF out and Mic In
• Expansion & security: 2x I2C, 8x GPIO, 1x SPI on expansion header; optional TPM 1.2/2.0; onboard FAN connector; front-panel RST/PWR buttons and activity LED signals on header
• Power: 12 V DC cabled; RTC coin cell
• OS support: Microsoft® Windows 11 IoT Enterprise LTSC; Edgehog OS
• Operating temperature: 0 °C to +60 °C (commercial)
• Dimensions: 100 x 72 mm (3.93" x 2.83")
• Part number: PN SBC-pITX-ADL-N
