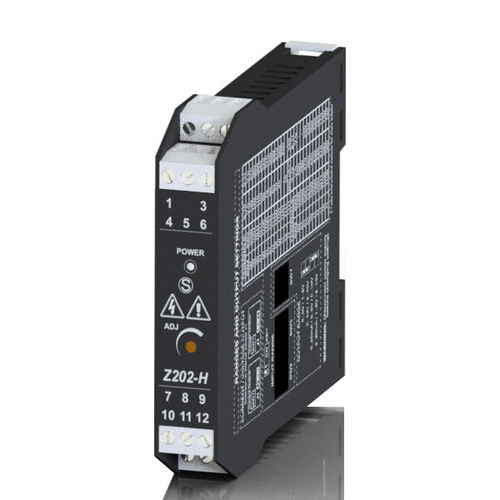

Analog isolator-converter Z202-H
galvanic

analog isolator-converter
analog isolator-converter
Add to favorites
Compare this product

Characteristics

Type
analog
Other characteristics
galvanic

Description

Z202-H AC voltage to DC isolator / converter (power sup. 85..265 Vac/dc) Z202 accept an alternate voltage (10..490 Vac) and provides an isolated analog output (mA or V). It disposes also of dip switches to set the specific range, input and output. It can be requested with low or high power supply. Z202 can be used also as a microammeter (500 µAfs).A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas. TECHNICAL DATA ORDER CODE :Z202-H DESCRIPTION:AC voltage to DC isolator / converter, 85-265 Vac/dc POWER SUPPLY:85..265 Vac/dc INPUT:Voltage, 41 scale pretarate 0..500 V OUTPUT:Current 0..20, 4..20 mA, voltage 0..5, 0..10, 1..5, 2..10 V ACCURACY:0,25% MAX ISOLATION:4.000 Vac SHIPPING AND EXPORT INFORMATION PRODUCT CODEZ202-H GROSS WEIGHT kg0,16 ORIGINIT TARIC85437090 ECCNEAR99
