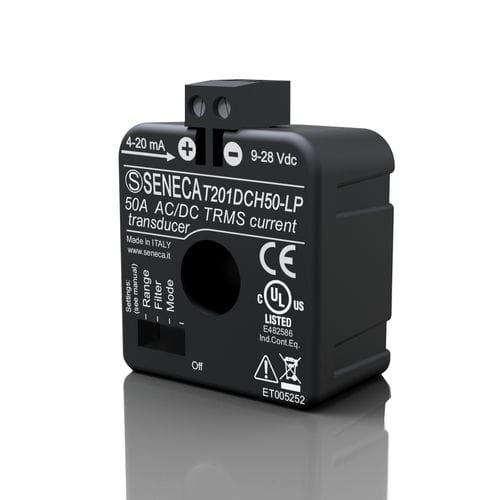

Magneto-resistive current transducer T201DCH50-LP
DIN railACDC

magneto-resistive current transducer
magneto-resistive current transducer
Add to favorites
Compare this product


Characteristics

Technology
magneto-resistive
Mounting
DIN rail
Electrical characteristics
AC, DC
Primary current

Max.: 50 A

Min.: 0 A

Description

T201DCH50-LP AC/DC contactless TRMS AC/DC transducer with 4..20 mA output T201DCH50-LP is an isolated, contact-less direct and alternating TRMS current transducer. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-trough current. For its electrical endurance, ease of use and compact dimensions, the T201DCH50-LP fits every kind of current measurement up to 50 Adc or 50Aac. The product is supplied with DIN rail plastic clip. TECHNICAL DATA ORDER CODE :T201DCH50-LP DESCRIPTION:AC/DC contactless TRMS direct and alternate current transducer with 4..20 mA AO POWER SUPPLY:loop powered ACCURACY CLASS:0,5 MEASURE TYPE:TRMS INPUT RANGE:±50 A rms o ±25 Arms (settable by DIP switch) OUTPUT TYPE:4..20 mA HOLE DIAMETER:12,3 mm SHIPPING AND EXPORT INFORMATION PRODUCT CODET201DCH50-LP GROSS WEIGHT kg0,05 ORIGINIT TARIC85437090 ECCNEAR99
