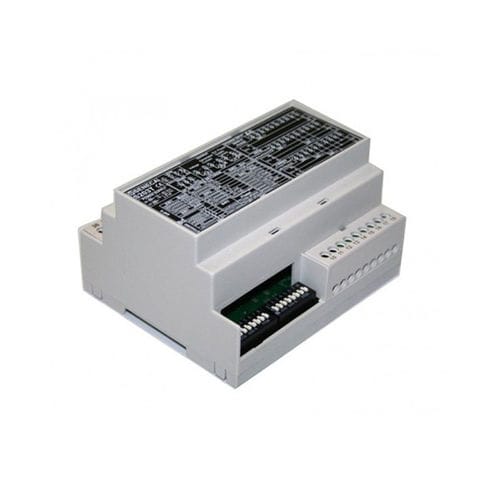

Electrical network analyzer S203T
powerfor integrationRS485

electrical network analyzer
electrical network analyzer
Add to favorites
Compare this product


Application domain
for electrical networks
Measured value
for integration
Other characteristics


S203T is a complete three-phase network analyzer with up to 600 Vac voltage range and up to 100 mA current range (specific CTs must be used). The instrument provides all the following electrical measurable variables: Vrms, Irms, Watt, Var, Va, Frequency, CosΦ. 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your data. Power supply: - 10..40 Vdc; 19..28 Vac (50-60 Hz) Input: - Voltage up to 600 Vac, current up to 100 mA Measure variable: - Vrms, Irms, Watt, Var, VA, frequency, CosΦ, power Analog output: - Voltage / current Re-transmission error: - 0,1% Accuracy: - 0,2% Connection: - Single-phase, three-phase, 4-wire triple-phase Accessories: - Current transformers TA15, TA25, TA100, accuracy 0,1% (1/1000); 15, 25, 100 A
