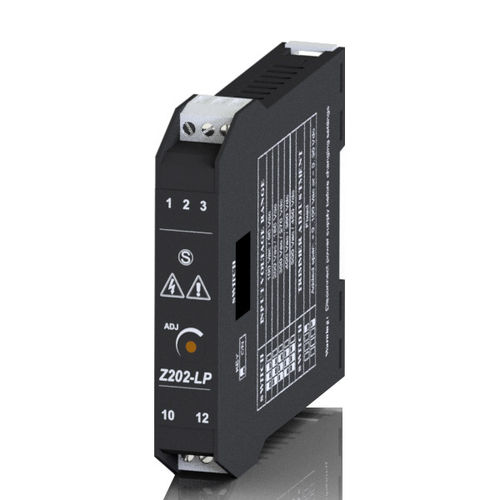

Loop-powered AC/DC converter Z202-LP

loop-powered AC/DC converter
loop-powered AC/DC converter
Add to favorites
Compare this product
indicative price

Characteristics

Other characteristics
loop-powered
Current

Max.: 20 mA

Min.: 4 mA

Voltage

Max.: 540 V

Min.: 0 V

Description

Z202-LP AC / DC voltage to DC isolator / converter (loop powered) Z202-LP is an universal converter for AC or DC voltages (0..500 Vac or 0..540 Vdc) and provides an isolated 4..20mA output. It’s a loop powered device through the 4..20mA loop output. Is possible to calibrate the instrument on any intermediate point in the continuous range of 0..500A. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas. TECHNICAL DATA ORDER CODE :z202-lp DESCRIPTION:AC / DC voltage to DC isolator / converter, loop powered POWER SUPPLY:5..28 Vdc (by loop) INPUT:Alternate voltage 0..500 Vac, direct voltage 0..540 Vdc (settable range by DIP-switch) INPUT FREQUENCY:20..400 Hz (alternate voltage) OUTPUT:Passive current 4..20 mA ACCURACY:0,3% (full scale) RESPONSE TIME:< 100 ms MAX ISOLATION:4.000 Vac SHIPPING AND EXPORT INFORMATION PRODUCT CODEZ202-LP GROSS WEIGHT kg0,16 ORIGINIT TARIC85437090 ECCNEAR99
