Gas rotary union 31002006 Series
2-passagealuminium

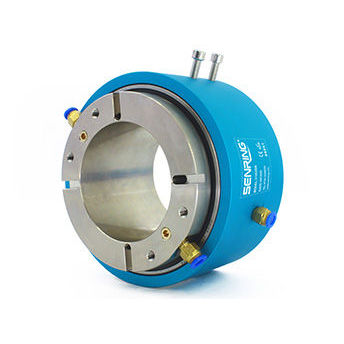

Gas rotary union - 31002006 Series - SenRing Electronics. - 2-passage / aluminium

Add to favorites

Compare this product

Characteristics

Medium: for gas
Number of passages: 2-passage
Material: aluminium
Rotational speed: 250 rpm, 1,000 rpm
(1,570.8 rad.min-1, 6,283.19 rad.min-1)
Pressure: 1,000,000 Pa
(145 psi)
Nominal size: 100 mm
(3.937 in)

Description

2 Gas Passage,Can Combine Transfer Electrical.Power/Signal,G1/8",Support 6~8mm Pipes,standard hollow shaft size 100mm. SENRING two passage Hollow Shaft Rotary Unions 31002006 series is 2 in 2 out hollow bore rotary union,standard hollow shaft size 100mm,other hollow shaft size can be customized,Can be installed with mechanical arm to rotate together. Features Can be installed with mechanical arm to rotate together ; Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc; 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc; Max. Pressure(s):1Mpa (vacuum: -100kPa, higher Pressure can be customized)； Support 2 G1/8" port for 6~8mm pipes; Standard hollow shaft size 100mm.
