Compressed air rotary union 3016004 Series
for vacuumfor steam16-passage

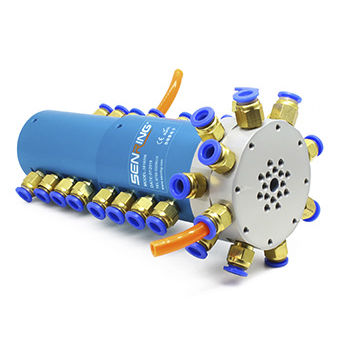

Compressed air rotary union - 3016004 Series - SenRing Electronics. - for vacuum / for steam / 16-passage

Compressed air rotary union - 3016004 Series - SenRing Electronics. - for vacuum / for steam / 16-passage - image - 2

Add to favorites

Compare this product

Characteristics

Medium

for compressed air, for vacuum, for steam

Number of passages

16-passage

Material

aluminium

Rotational speed

250 rpm, 1,000 rpm
(1,570.8 rad.min-1, 6,283.19 rad.min-1)

Pressure

Max.: 1,000,000 Pa
(145 psi)

Min.: 0 Pa
(0 psi)

Nominal size

4 mm
(0.157 in)

Description

3016004 Series M5 16 Passage Pnuematic/+Electric Hybridry Rotary Unions 16 Passage+6~36 Circuits Electrical,support 16 M5 port for 4mm pipes SENRING 3016004 series 16 passages rotary unions provides a positive seal between stationary piping and a rotating cylinder and is applied to compressed air,steam,vacuum..etc service.Available in 3016004,3016004-06S,3016004-12S,3016004-24S,3016004-36S mod Features Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.; 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc. Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized)； Support 16 M5 port for 4mm pipes;
