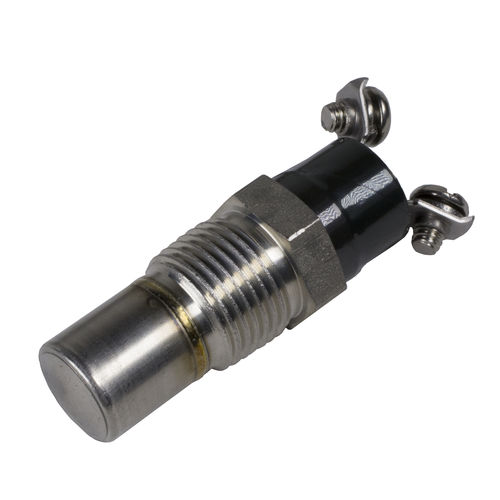

The 5100 series is a single pole, single throw, snap-action, hermetically sealed temperature control designed for applications requiring high vibrational resistance in an isolated case.
The snap-action disc is located in the very tip of the probe,assuring rapid and true response to temperature. The welded construction of this sealed thermostat ensures meeting thermal shock specifications of MIL-STD-202, method 107, test condition B. In addition,the tube will withstand a pressure exposure limit of 1500 PSI.
• Hermetic glass seal, isolated-case only
• Ideal for immersion sensing
• Multiple mounting and terminations available
• UL and CSA recognized component
Contact Operations - Either close on rise (make) or open on rise (break), SPST (Single Pole, Single Throw)
Dielectric Strength - 1800 Vrms, 60Hz terminals to case
Insulation Resistance - 60 megaohms at 500 VDC
Vibration - .06DA, 10-55 Hz, 20G 20-2000 Hz
Shock - .75G 6ms duration (sawtooth)
Pressure Exposure Limit - Standard tube will withstand 1500 psi max
