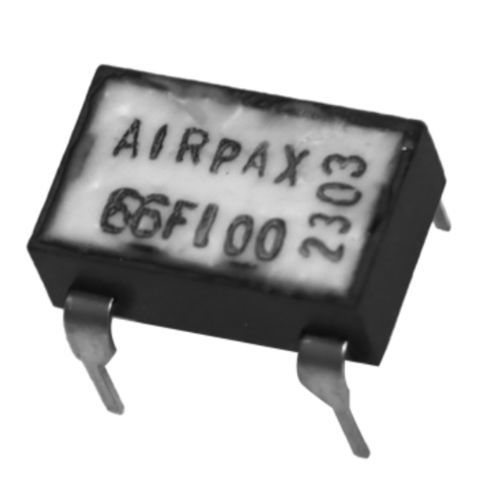

Bi-metal thermostat 6600

presetinsertionfor printed circuit boards

The Airpax® 6600 series is a RoHS compliant, positive snap action, single pole / single throw, a subminiature bimetallic thermostat that provides accurate and reliable sensing and switching in a single device. The 6600 series thermostat dimensionally conforms to the international product package standard 8-pin DIP (N8A Dual Inline Package). The 6600 is ideally suited for use on printed circuit boards. Its size and shape conserves space on crowded PC boards and can be installed using auto-insertion equipment. The device is sealed to withstand wave soldering and board washing operations. Features RoHS compliant per EU directive 2002 / 95 / EC 8-pin DIP international electronic package standard Ideal for surface and air sensing on PC boards Gold-plated contacts Up to 30,000 life cycles @ max standard amperage (120VAC) Up to 100,000 life cycles @ max 0.02 amperage (5 VDC)
