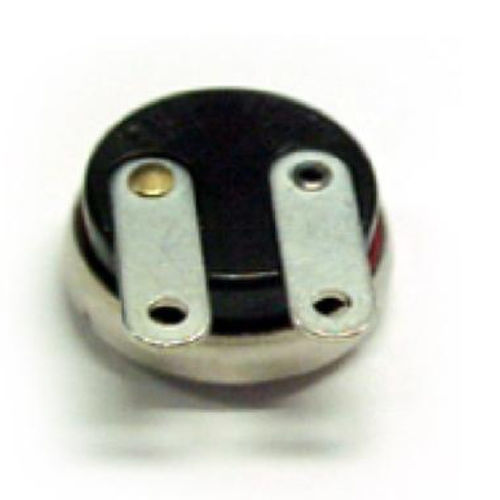

Hermetic thermostat 6786

for heating and cooling

KLIXON® 6786 low profile environmentally sealed 1/2" thermostats provide clean and positive switching action while being 60% shorter than Sensata's similar 1/2" hermetic thermostats. They are designed for use where maximum shock and vibration resistance is required and protection against dust and foreign particles is important. KLIXON® 6786 series thermostats provide rapid thermal response and a dependable circuit which makes them ideal for applications like magnetic transformers for particle accelerators, cryogenic pumps, and aircraft window glass heaters. • Environmentally sealed, low profile • Normally open or normally closed • Pre–set, non–adjustable calibration • Single pole, single–throw (SPST) • Max resistive load: 7 amp • Ambient temperature range: -65°F to 400°F (-53.9°C to 204.4°C) • Many options available including solder type terminals in parallel or opposed alignments, brackets, studs, and with or without surface mounting brackets • UL recognized, file #E34618 (Go to UL online certifications directory web page) • Canadian-UL (UL File #34618)
