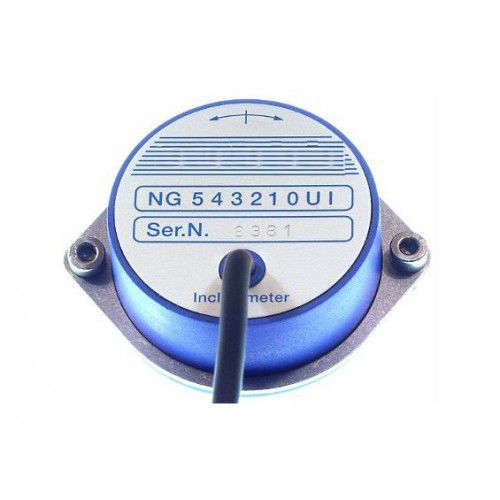

1-axis inclinometer SM-NGi
4-20 mAcapacitivehigh-precision

1-axis inclinometer
1-axis inclinometer
Add to favorites
Compare this product


Characteristics

Number of axes
1-axis
Output
4-20 mA
Technology
capacitive
Other characteristics
high-precision, for angle measurement, for the construction industry, for geophysics applications, IP65
Inclination

Min.: 10 °

Max.: 80 °

Resolution

0.001 °

Description

The SM-NGI are capacitive and liquid based inclinometers with integrated sensor electronics and current amplifier. Electronic temperature compensation makes up for the temperature drift of the sensitivity of the primary transformer. An integrated, highly stable voltage regulator ensures stable operation for a range of supply voltages. The measurement technique provides a linear relationship between the angle to be measured (up to 80 degrees) and the output signal that is calibrated during manufacture. The measuring time constant can be matched to the requirements of the measurement task by appropriate hardware programming. The power is obtained from the measurement current loop, thereby eliminating the need for a separate power supply and enabling operation with two wire connection. Measuring range ±10, ±30, ±80°. Resolution < 0.01 %. Degree of protection IP 65. High long-term stability. High accuracy and signal-to-noise.
