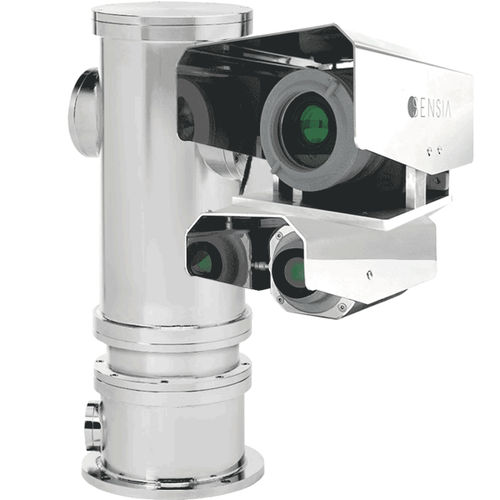

Digital camera Caroline FYL

industrialmonitoringfor gas leak detection

Caroline FYL is the first combined system based on a camera and a laser for methane detection and quantification. This upgrade version of Caroline FY combines OGI detection capabilities with punctual quantification features in the most advanced monitoring system available. Caroline fixed series integrate the latest technology in uncooled infrared detectors, offering consistent and error-free performance. It is the most complete system for constant monitoring of environments with risks of CH4, SO2, VOC’s, Natural Gas and/or hydrocarbons leaks. Laser Specifications Laser Range : 50 m Measurement Performance : <50000 ppm·m : Accuracy ± 10% Camera Specifications FPA : Uncooled 640 x 480 px Pixel Pitch : 17 µm NETD : <22mK @ +30ºC Lenses : N: 12º x 9º | 18º x 13º | 31º x 23º Data Protocol : GigE 9 Hz / 25 Hz Power (Camera + Laser) : <5 watts; PoE (power over ethernet) 9v-48v Accuracy : +/- 1ºC (from 10ºC to 60ºC Scene Temp.) Pan & Tilt Specifications Mounting : 4 x ⌀ 11 on 195 PCD Backlash : < 0,1 ºC Max. Preset Accuracy : 0,5 ºC Power : 230 – 120 VAC, 70 W
