Digital camera Raiindustrialfire detectionmonitoring
Add to favorites
Compare this product
Characteristics
- Technology
- digital
- Applications
- industrial, fire detection
- Function
- monitoring, surveillance, flame detection
- Spectrum
- infrared
- Sensor
- FPA
- Interface
- PoE, GigE, Ethernet
- Other characteristics
- zoom, fixed
Description

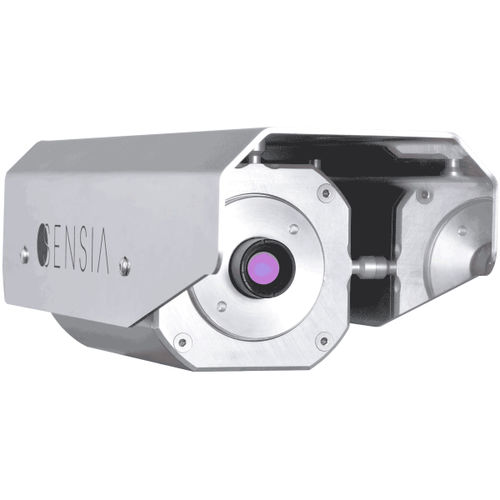

Rai is the most reliable and cost effective camera for 24/7 surveillance, intelligent thermography and fire detection. Rai is available in different array formats.
This comprehensive monitoring system presents a series of innovative capabilities assembled under a single control software, Redlook.
Base specifications
FPA : 384 x 288 | 320 x 260 px
Pixel Pitch : 17 μm
NETD : <50mK @ +30ºC
Lenses : Different lenses as required
Digital Zoom : x12
Accuracy : ± 2ºC (from 100ºC to 600ºC)
Data Protocol : GigE 9 Hz / 25 Hz
Power : <3 watts; PoE (power over ethernet) 9v-48v
Weight : 2.8 kg
Size : 97x110x330mm
Operation Temperature : -10ºC to +50ºC
Storage Temperature : -40ºC to +71ºC
Certifications : EMC (EN 61326:2013)
IP 65 (EN 60529:2018)
