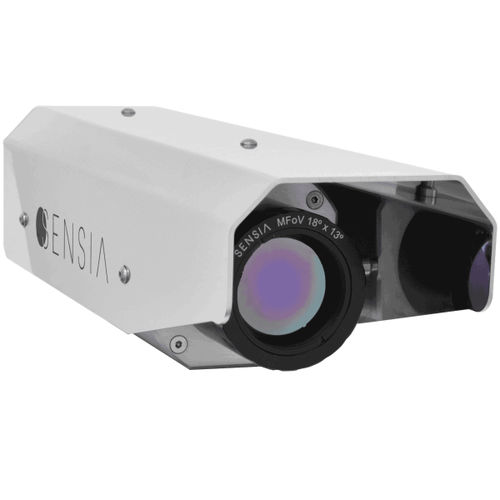

Industrial camera Caroline FX

digitalmonitoringfor gas leak detection

Caroline fixed series integrate the latest technology in uncooled infrared detectors, offering consistent and error-free performance. It is the most complete system for continuous monitoring of environments involving SF6 and/or refrigerant gas leaks. RedLook is implemented in SENSIA’s line of fixed systems for 24/7 monitoring. This comprehensive monitoring system presents innovative capabilities assembled under a single control software. Base specifications FPA : Uncooled 640 x 480 px Pixel Pitch : 17 μm NETD : <22mK @ +30ºC Lenses : N: 12ºx9º | M: 18ºx13º | W: 31ºx23º Data Protocol : GigE 9 Hz / 25 Hz Power : <3 watts; PoE (power over ethernet) 9v-48v Weight : 2.8kg Size : 97 x 110 x 330 mm Operation Temperature : -10ºC to +50ºC Accuracy : ± 1ºC (from 10ºC to 60ºC Scene Temp.) Storage Temperature : -40ºC to +71ºC Ingress Protection : EN 60529 (IP66/IP67) Certifications : EMC (EN 61326:2013) ATEX : II 3G Ex ec IIC T4 Gc -20°C ≤ Tamb ≤ +50°C EN 60079-0:2012 + A11:2013; EN 60079-7:2015
