Bending beam load cell BL series
single-pointstrain gauge2 mV/V

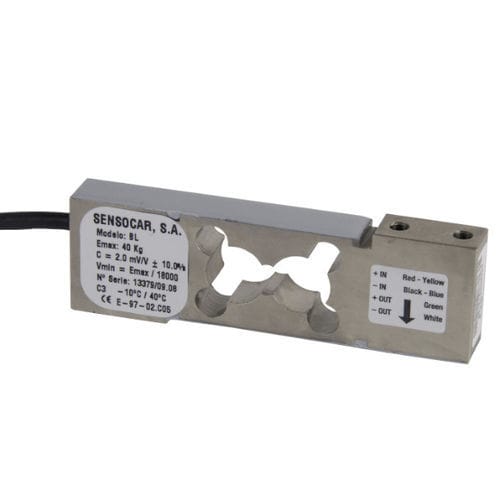

Bending beam load cell - BL series - SENSOCAR - single-point / strain gauge / 2 mV/V
Bending beam load cell - BL series - SENSOCAR - single-point / strain gauge / 2 mV/V
Bending beam load cell - BL series - SENSOCAR - single-point / strain gauge / 2 mV/V - image - 2
Bending beam load cell - BL series - SENSOCAR - single-point / strain gauge / 2 mV/V - image - 3
Add to favorites
Compare this product
Go to the SENSOCAR website for more information

Characteristics

Type
bending beam
Form
single-point
Technology
strain gauge
Output signal
2 mV/V
Applications
weighing, for bagging machines, for dosing, for parts counting
Other characteristics
OIML, stainless steel, high-resolution, IP67
Rated load

7 kg, 10 kg, 20 kg, 40 kg
(15.43 lb, 22.05 lb, 44.09 lb, 88.18 lb)

Length

125 mm
(4.921 in)

Height

40 mm
(1.57 in)

Description

High resolution (C5-C6) Animal Weighing Check weighers Dosing systems Piece counting scales Single point platform Multihead weigher Dynamic weighers Bagging Machines Divisions Up to 6000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-67 Accuracy Class C3-C4-C5-C6 Output ratio error (RO%) ± 10% Vmin Emax/18000 Excitation voltage 5...15V Input resistance 390 ± 3Ω Output resistance 350 ± 3Ω Zero balance ± 1% Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Insulation resistance >5000M Ω Cable length 1m, 5m
