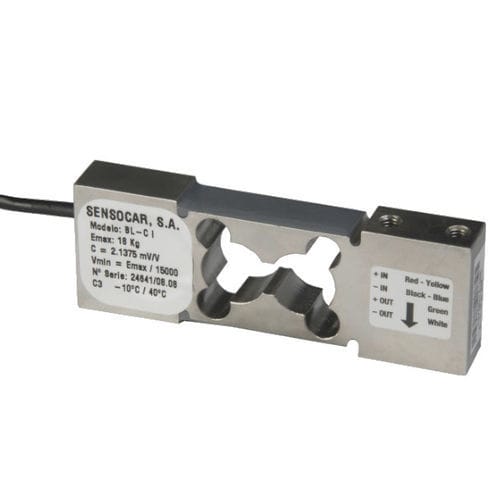

Bending beam load cell BL-C
single-point2 mV/Vweighing

Bending beam load cell - BL-C - SENSOCAR - single-point / 2 mV/V / weighing
Bending beam load cell - BL-C - SENSOCAR - single-point / 2 mV/V / weighing
Add to favorites
Compare this product
Go to the SENSOCAR website for more information

Characteristics

Type
bending beam
Form
single-point
Output signal
2 mV/V
Applications
weighing, for bagging machines, for parts counting
Other characteristics
stainless steel, high-resolution, IP67
Rated load

10 kg, 18 kg, 36 kg
(22.05 lb, 39.68 lb, 79.37 lb)

Length

115 mm
(4.528 in)

Height

40 mm
(1.57 in)

Description

High resolution (C5-C6) Animal Weighing Check weighers Dosing systems Piece counting scales Single point platform Multihead weigher Dynamic weighers Bagging Machines Divisions Up to 6000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-67 Accuracy Class C3-C4-C5-C6 Rated Output (RO) 2mV/V Output ratio error (RO%) ± 10% Vmin Emax/18000 Excitation voltage 5...15V Input resistance 390 ± 3Ω Output resistance 350 ± 3Ω Zero balance ± 1% Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Insulation resistance >5000M Ω Cable length 1m, 5m

Catalogs

BL / BL-C
BL / BL-C
1 Pages
Catalogue
Catalogue
95 Pages
