Bending beam load cell PL-50 series
single-pointstrain gauge2 mV/V

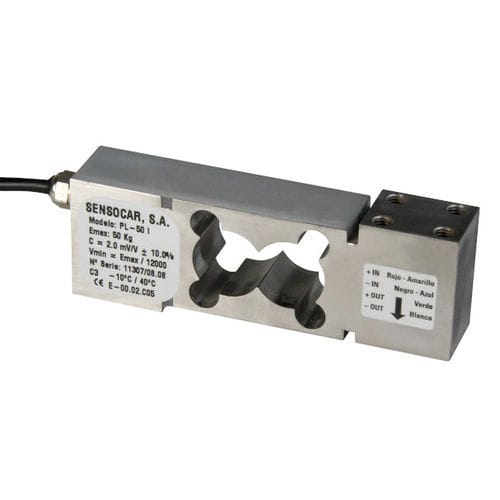

Bending beam load cell - PL-50 series - SENSOCAR - single-point / strain gauge / 2 mV/V
Bending beam load cell - PL-50 series - SENSOCAR - single-point / strain gauge / 2 mV/V
Bending beam load cell - PL-50 series - SENSOCAR - single-point / strain gauge / 2 mV/V - image - 2
Bending beam load cell - PL-50 series - SENSOCAR - single-point / strain gauge / 2 mV/V - image - 3
Add to favorites
Compare this product
Go to the SENSOCAR website for more information

Characteristics

Type
bending beam
Form
single-point
Technology
strain gauge
Output signal
2 mV/V
Applications
weighing, for bagging machines, for dosing, for parts counting
Other characteristics
OIML, stainless steel, high-resolution, IP67, IP68, hermetic
Rated load

Max.: 250 kg
(551.16 lb)

Min.: 25 kg
(55.12 lb)

Length

125 mm
(4.921 in)

Height

45 mm
(1.77 in)

Description

High resolution (C5-C6) Animal Weighing Check weighers Person weight (medical) scales Single point platform Multihead weigher Dynamic weighers Divisions Up to 6000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-67 / IP-68 Accuracy Class C3-C4-C5-C6 Output ratio error (RO%) ± 10% Vmin Emax/12000 Excitation voltage 5...15V Input resistance 390 ± 3Ω Output resistance 350 ± 3Ω Zero balance ± 1% Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Insulation resistance >5000M Ω Cable length 5m
