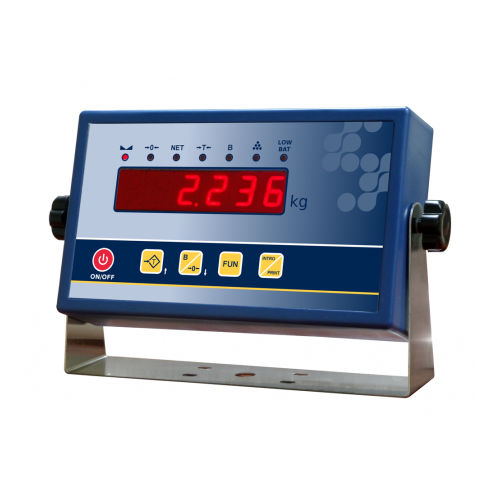

LCD display weight indicator SCA1 series

LED displaybenchtopwaterproof

The SCA1 is a weight indicator approved according to OIML R76 and EN 45501 (Class III - 10000 divisions) Finished in ABS or Stainless Steel housing. It's available in different versions to suit the needs of each application (see in Versions tab). RS232 Communications Port and second RS232 or RS485 Communications Port. Keyboard 5 function keys Material Stainless steel, ABS Homologation OIML R76//EN 4550 10.000e Clase III Weight 4,4kg Temperature range -10 .. 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0,6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 80 - 264VAC Alibi Memory (DSD) 0/1 Communications Protocols Sensoc (ASCII Protocol), Modbus TCP, Modbus RTU/ASCII RS232 Port 1/2 RS485 Port 0/1 USB 0/1 Functions: • Weight-Tare-Accumulation • Manual Tare • Piece Counting • Dynamic and animal weighing • Accumulation of weighings
