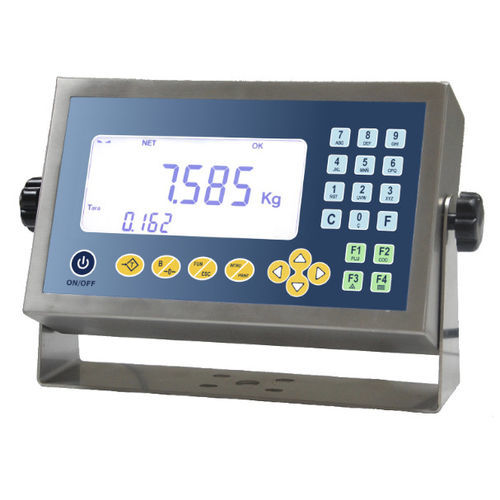

LCD display weight indicator SCA10 serieswall-mountIP65IP67
Add to favorites
Compare this product
Characteristics
- Display
- LCD display
- Mounting
- wall-mount
- Protection level
- IP65, IP67
- Output
- Ethernet, wireless
- Other characteristics
- programmable
- Applications
- for truck scale, for parts counting
Description
Technical specifications
Keyboard Alphanumerical keyboard
Material Stainless steel, ABS
Homologation OIML R76//EN 4550 10.000e Clase III
Display LCD display with 3 numeric display fields
Temperature range -10 .. 40℃
A/D Converter 24 bits (1.000.000 div)
Min. input voltage per verification scale interval 0,6μV
Voltage of the measuring range 5 - 15mV
Minimum load cell impedance 40Ω
Max. signal voltage for dead load 10mV
Power supply 80 - 264VAC
Alibi Memory (DSD) 0/1
Communications
RS232 Port 1/2
RS485 Port 0/1
USB 0/1
Software
Functions:
• Weight-Tare-Accumulation
• Manual Tare
• Piece Counting
• Dynamic and animal weighing
• Accumulation of weighings
