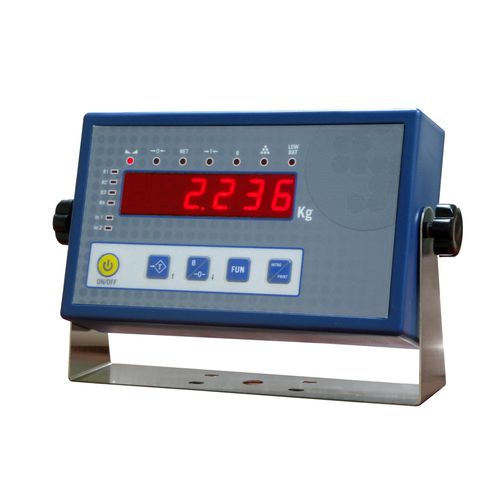

Digital weight indicator SCA1 CRT series

benchtopwaterproofRS-232

The SCA1 is a modular weight indicator approved according to OIML R76 and EN 45501 (Class III - 10000 divisions) Finished in ABS or Stainless Steel housing. Combining the different cartridges (Accessories) being able to expand the features of the equipment:  • Analog and digital load cells • Relays and Digital inputs • Communications (Ethernet, Radio) Keyboard 5 function keys Material Stainless steel, ABS Homologation OIML R76//EN 4550 10.000e Clase III Weight 4,4kg Temperature range -10 to 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0.6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 80 - 264VAC Alibi Memory (DSD) 0/1 Communications Protocols Sensoc (ASCII Protocol), Modbus TCP, Modbus RTU/ASCII RS232 Port 1/2 RS485 Port 0/1 USB 0/1 Radio 0/1 Functions: • Weight-Tare-Accumulation • Manual Tare • Piece Counting • Dynamic and animal weighing • Dosage and filling • Discharge with tickets with Gross-Tare-Net • Limiter (maximum, minimum, window) • Semaphore • Accumulation of weighings
