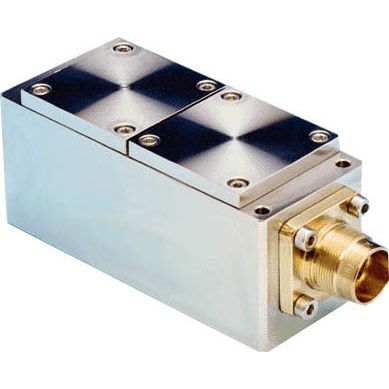

1-axis inclination sensor SX41170 series
current outputclosed-loop gravityrugged

1-axis inclination sensor
1-axis inclination sensor
Add to favorites
Compare this product

Characteristics

Number of axes
1-axis
Output
current output
Technology
closed-loop gravity
Other characteristics
rugged, servo-driven, submersible
Inclination

Max.: 90 °

Min.: -90 °

Description

Description Meggitt (Sensorex) SX41170 servo-inclinometer/ accelerometer is DC in/ DC out single axis inclination sensor. The output is proportional to the sine of the angle. This inclinometer/ accelerometer is available with a voltage or a current output, and with an axial or radial connector. It is particularly adapted to hard environmental conditions. Its floated sensitive element allows it to survive high vibrations and shocks levels. Moreover, its electronic circuit is designed to be insensitive to electro-magnetic perturbations. Applications LNG ships pitch & roll control Offshore platforms pitch & roll control Dam monitoring Characteristics High performances Excellent temperature stability Very high resistance to shocks and vibrations (accreditation GAM T13) 316L stainless steel rugged and 100 bar submersible housing Submersible connector (100 bar encast) Conform to European Standard of Electro-magnetic compatibility
