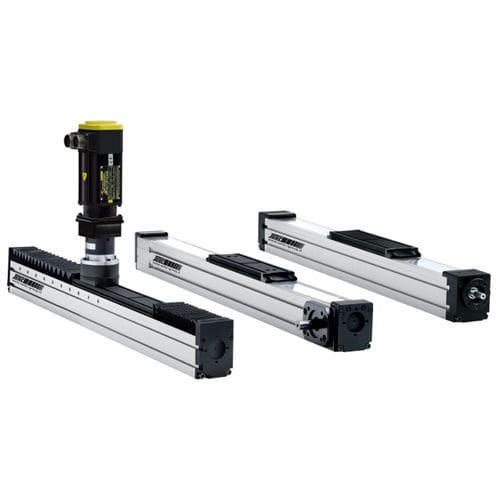

Electric linear unit DYNACT series

profilealuminumfor heavy loads

The linear units DYNACT series represent the best synthesis of the 40 years SETEC know how in linear motion. Setec is known for using the best components in order to reach the highest quality level and to obtain reliable products. By using accurate recirculating balls linear guideways and very resistant aluminium profiles they can support heavy load for a high lifetime. The mechanical drive can be chosen according to the application among the following versions: toothed belt, ballscrew or rack & pinion ( recently patented ), in case of high speed requirement, great accuracy in positioning or when only the motion of the travelling profile is needed with the motor fixed directly on the carriage. 3 different sizes (15-65, 20-80, 25-110) Available versions: Belt driven, Ballscrew, Omega belt, Rack & Pinion Strong aluminium profile with a very high torsional and bending inertia, high stiffness to stand heavy loads even when accuracy and speed are needed High efficiency system thanks to the friction reduction (low motor torque required) Low geometrical errors: High lifetime Modularity: Product conceived in order to easily create X-Y-Z systems Lower number of parts: better lead time and lower costs for a wider range Centralized Lubrication System externally located on the carriage’s pad: easier and effective and lower maintenance costs High load capacity By using accurate linear guideways with caged balls for a noise reduction and a very resistant aluminium profiles they can support heavy load for a high life time Strong and modular industrial design provides maximum performance together with highest reliability, used in multiple applications in the automation field.
