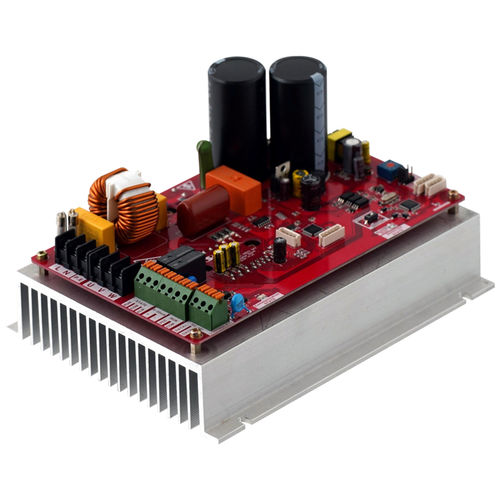

Induction frequency inverter INB22-SA

built-inintegratedalarm

Modular Type, Power 1P 220VAC,Rated Capacity 1.5KW Inverter for DC/AC compressor control On/Off operation, frequency control, input current input BAND control, PID control, high pressure, condenser temperature overheating Alarm Output – Operation error, over voltage, under voltage, over current, overheating, sensor failure The INB Series, a customer-oriented OEM product, is designed in a modular format to provide a versatile range of inverters for controlling DC and AC compressors. It enables variable RPM (speed) control using a 4-20mA signal, allowing for energy-efficient operation while meeting specific customer requirements. This series is particularly optimized for DC compressors, featuring built-in protection functions and pre-configured settings tailored for refrigeration and air conditioning applications. These integrated features help reduce costs during mass production and prototype testing. ※ DC Compressors: - Variable-capacity compressors driven by PMSM motors - Also referred to as DC motors or BLDC motors ※ AC Compressors: - Available in fixed-speed and variable-capacity types - Driven by induction motors - Also known as AC motors, fixed-speed motors, or fixed-speed devices
