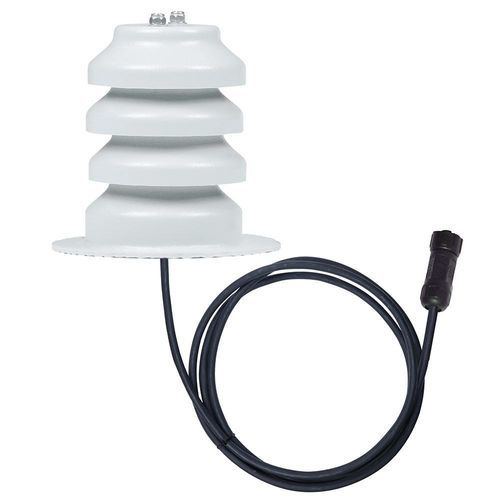

Relative humidity and temperature sensor 3S-RH&ATI2C3VDCweather-resistant
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Output
- I2C
- Supply voltage
- 3VDC
- Protection level
- weather-resistant, UV-resistant, IP65
- Other characteristics
- high-precision, stainless steel
- Applications
- industrial, for solar panels
- Measuring range (%)
Min.: 0 %
Max.: 100 %
- Precision
1 %
- Resolution
Min.: 0.1 %
Max.: 0.1 %
- Measuring range (temperature)
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)- Accuracy (temperature)
Min.: 0.1 °C
(32.18 °F)Max.: 0.1 °C
(32.18 °F)- Resolution (temperature)
Min.: 0.1 °C
(32.18 °F)Max.: 0.1 °C
(32.18 °F)- Working temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
Product overview

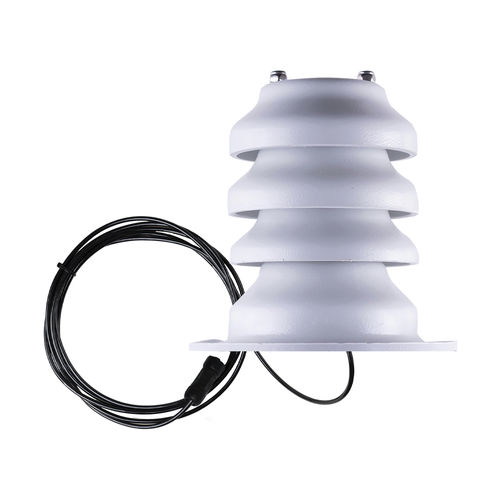

The SEVEN 3S-RH&AT is a capacitive relative humidity and ambient temperature sensor designed for precise environmental monitoring. The unit is supplied with a mounting facility and protected from direct solar radiation by an ABS radiation shield with four aspirated plates to ensure free airflow.
Working principle
The sensing element is mounted inside a UV-resistant protective shield. The 3S-RH&AT measures relative humidity and ambient temperature via a measuring transmitter with an I²C output and connects through a 7-pin connector to SEVEN irradiance sensors, Sensor Box types, dataloggers or other receiving devices.
Applications
Installation
Verify system operation at ground level before final installation. Position the sensor away from dark, reflective or heat-absorbing surfaces and clear of local heat sources (vents, chimneys). For rooftop installations, mount on the building side facing prevailing winds. Installation is performed in two stages: install the mounting structure, then secure the sensor to the framework.
Key benefits
Frequently Asked Questions (FAQ)
Technical specifications
The SEVEN 3S-RH&AT is a capacitive relative humidity and ambient temperature sensor designed for precise environmental monitoring. The unit is supplied with a mounting facility and protected from direct solar radiation by an ABS radiation shield with four aspirated plates to ensure free airflow.
Working principle
The sensing element is mounted inside a UV-resistant protective shield. The 3S-RH&AT measures relative humidity and ambient temperature via a measuring transmitter with an I²C output and connects through a 7-pin connector to SEVEN irradiance sensors, Sensor Box types, dataloggers or other receiving devices.
Applications
- Solar energy systems and PV monitoring
- Industrial sites and process control
- Production and manufacturing facilities
- Warehousing and storage condition monitoring
- Environmental monitoring in transport vehicles
- Humidity control for moisture-sensitive products and equipment
Installation
Verify system operation at ground level before final installation. Position the sensor away from dark, reflective or heat-absorbing surfaces and clear of local heat sources (vents, chimneys). For rooftop installations, mount on the building side facing prevailing winds. Installation is performed in two stages: install the mounting structure, then secure the sensor to the framework.
Key benefits
- High accuracy: Precise humidity and temperature measurements with minimal variation.
- Weather resistance: Plastic ABS shield and robust housing provide corrosion and UV resistance.
- Shielded design: UV-resistant radiation shield protects sensing elements for consistent readings.
Frequently Asked Questions (FAQ)
- Class: All 3S-RH&AT sensors are Class A according to IEC 60751:2022 (Temperature) and Class A according to IEC 61724-1:2021 (Relative Humidity).
- Warranty: 2-year warranty.
- Price: Price range between 145 and 260 EUR.
- Delivery times: Small orders (up to 20 pcs): approx. 2–3 weeks; Bulk orders (20–100 pcs): approx. 6–8 weeks.
- Setup: Follow the user manual (user manual available).
- Cable included: Supplied with a 3 m LIYYC11Y PUR cable (UV and weather resistant); other lengths available on request.
Technical specifications
- Item Code: 3S-RH&AT
- Measured data: Relative Humidity and Ambient Temperature
- Sensor type: Capacitive
- RH range: 0% to 100%
- RH accuracy: ±1% RH (20 … 70%) at 25 °C
- RH resolution: 0.1%
- T range: -40 °C to +85 °C
- T accuracy: ±0.1 °C (5 … 60 °C)
- T resolution: 0.1 °C
- Data output: I²C
- Power supply: 3 V DC
- Electrical connection: 3 m LIYYC11Y PUR cable, UV and weather resistant
- Operating temperature range: -40 °C to +85 °C
- Shield dimensions: Ø 105 x 100 mm
- Weight: 0.2 kg
- IP rating: IP65
- Sensor housing material: Stainless steel tube – membrane filter
- Shield material: ABS
- Standard: Class A according to IEC 60751:2022 (Temperature); Class A according to IEC 61724-1:2021 (Relative Humidity)
