Wind tunnel

Overview

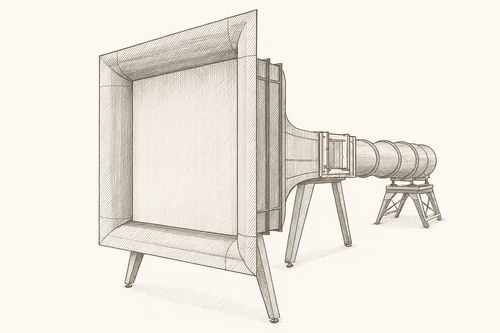

The Ballastco wind tunnel is an open-circuit aerodynamic test facility designed for R&D, academic laboratories and industrial aerodynamics testing. It provides laminar airflow with turbulence intensity below 1%, a wide adjustable airspeed range and a low-blockage test section to ensure repeatable, accurate measurements for model testing and sensor calibration.

Key Features

• Excellent flow quality: Laminar airflow with turbulence intensity <1%, achieved using specially designed stainless-steel flow-straightening screens.
• Wide dynamic range: Adjustable airspeed from 0.4 m/s to 45 m/s for low-speed to medium-speed aerodynamic studies.
• High-precision test section: Spacious test chamber with a low blockage ratio to minimize interference and improve measurement accuracy.
• Clear visual access: Transparent acrylic viewing panels allow full observation of model behavior and flow visualization.
• Safe and flexible operation: Open-circuit layout with high-resolution speed control; suitable for wind sensor calibration and repeatable laboratory testing.

Technical specifications

• Flow quality: laminar airflow with turbulence intensity <1%
• Flow straightening: specially designed stainless-steel flow-straightening screens
• Airspeed range: adjustable from 0.4 m/s to 45 m/s
• Test section: spacious chamber with low blockage ratio for high accuracy
• Viewing: transparent acrylic panels for full visual access during tests
• Design: open-circuit configuration
• Control: high-resolution speed control suitable for sensor calibration

Typical applications

• Aerodynamic model testing for aircraft, UAVs and rotorcraft components
• Propeller, blade and small-component performance testing
• Calibration of anemometers and wind sensors
• Academic research, flow visualization and aerodynamic education
• Industrial R&D and quality control for external flow components

Options & accessories

• Balance and force measurement systems (multi-axis balances)
• Data acquisition and instrumentation packages
• Model mounts, stings and traversing systems
• Smoke or particle seeding and optical flow-visualization kits
• Customized test-section dimensions and acoustic treatments on request

Ordering & support

• Available as standalone systems or integrated test benches.
• Factory acceptance testing, on-site commissioning and operator training offered.
• Spare parts, calibration services and maintenance contracts available for long-term operation.
