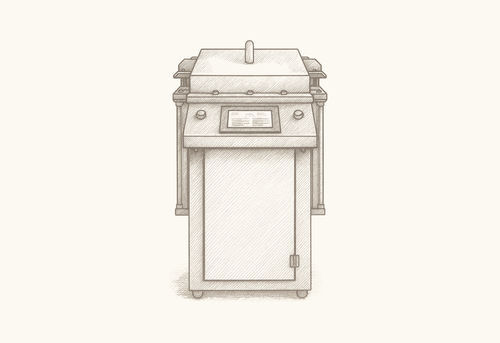

Hot laminating machine BALLASTCO-PVL-480

vacuumhigh qualityautomated

Overview
The BALLASTCO-PVL-480 PV Laminator is an industrial lamination system for photovoltaic module production. It bonds glass, EVA (Ethylene Vinyl Acetate), solar cells and backsheet into a single laminated module using vacuum, controlled heat and pressure, ensuring consistent encapsulation across large-format panels.

Key features

• Supports large-size modules and customizable lamination area
• Precise temperature and pressure control with PID regulation
• High vacuum performance for reliable de-airing
• Automatic cover system and PLC-based touchscreen HMI

Design and control
Advanced heating layout provides high temperature uniformity over the working area. Robust vacuum infrastructure combined with PLC-based control ensures stable, repeatable process management. Automatic operating modes and an intuitive touchscreen HMI simplify setup and daily operation.

Materials and flexibility
Engineered to process standard glass-backsheet and glass-glass module structures as well as various composite and laminated materials. Lamination area and process parameters can be adapted to different panel dimensions and compositions.

Production benefits
Designed for integration into high-efficiency production lines, the system offers short cycle times, consistent process control and industrial-grade reliability to support high product quality and increased throughput in PV module manufacturing.

Technical specifications

• Model: BALLASTCO-PVL-480
• Function: Vacuum, heat and pressure lamination for PV modules
• Materials processed: Glass, EVA (Ethylene Vinyl Acetate), solar cells, backsheet, composite materials
• Control: PLC-based control system with touchscreen HMI; PID temperature control
• Performance: High vacuum capability; high temperature uniformity
• Operating modes: Automatic operating modes
• Customization: Lamination area and parameters customizable for different panel dimensions
• Applications: Glass-backsheet and glass-glass PV modules
