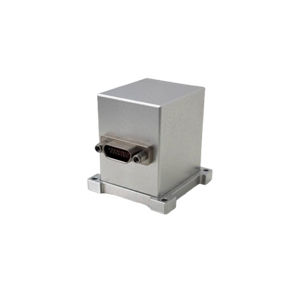

MEMS compass ER-MNS-04C

Mini MEMS North seeker for Heading machine Introduction The ER-MNS-04C MEMS north seeker adopts the latest MEMS gyro technology, breaking through the volume and performance limitations of traditional directional equipment, compressing the volume to the extreme, meeting the integrated operation requirements, and can be easily embedded in various small devices or complex systems. By sensing the horizontal component of the earths rotation angular velocity, the true north direction can be measured without relying on an external reference benchmark, providing a high-precision azimuth benchmark for complex environments. Technical Features 1.Adopt the latest MEMS gyro technology, with the ultimate volume compression, the size is 40×40×42 (with shell)/27×26×34 (inner table); 2.Adopt the latest three-axis MEMS gyro, three-axis MEMS plus meter strapdown inertial measurement technology; 3.Full solid-state design, built-in inner table, excellent impact and vibration resistance, and resistant to harsh environments; 4.Modular design, OEM is available, the inner table adopts the Chinese tripod design, and has high reliability; 5.It has the function of self-seeking north and is not affected by magnetic fields; Applications Tunneling orientation and axis calibration Direction and trajectory control for underground engineering pipeline tracking and mapping Trace control and azimuth calibration for underground drilling equipment North finding in land surveying/geological instrument exploration Initial alignment Direction pointing and tracking in satellite antenna and target tracking systems Precision platform attitude measurement and control
