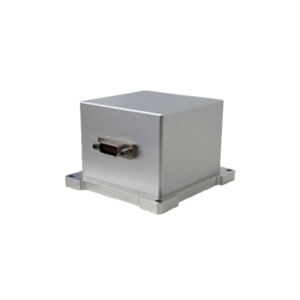

Gyrocompass ER-MNS-05C

Ultra-high precision MEMS north seeker for Heading machine Technical Features 1.Adopt the latest MEMS gyro technology, compact size, 70×65×45mm (with shell)/43.2×43.2×35.5 mm (inner table); 2.Adopt the latest three-axis MEMS gyro, three-axis MEMS plus meter strapdown inertial measurement technology; 3.Full solid-state design, built-in inner table, excellent impact and vibration resistance, and resistant to harsh environment; 4.Modular design, OEM, strong scalability; 5.With self-seeking function, not affected by magnetic field; 6.Alignment/north-seeking accuracy 0.25°; Applications Tunneling orientation and axis calibration Direction and trajectory control for underground engineering pipeline tracking and mapping Trace control and azimuth calibration for underground drilling equipment North finding in land surveying/geological instrument exploration Initial alignment Direction pointing and tracking in satellite antenna and target tracking systems Precision platform attitude measurement and control
