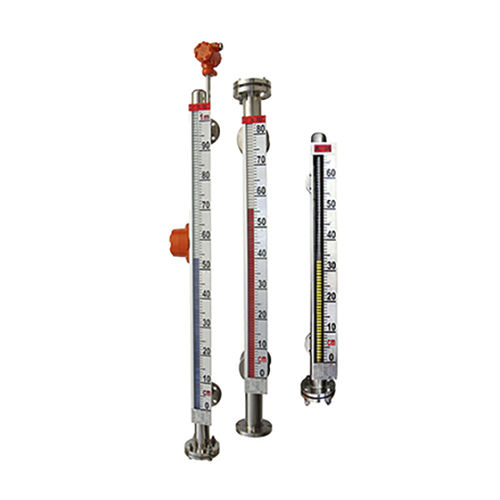

Liquids level gauge UHZ-99

magneticfor the chemical industryexplosion-proof

UHZ-99A side-mounted magnetic level gauge can be used to measure level of various vessels in the shape of tower, kettle, groove and ball as well as boiler furnace. It can be used in complex conditions, such as high-sealing, leak prevention, high pressure, high temperature and corrosion. In the measurement process, no measurement blind area. It strikingly displays the level and has a wide measurement range. Compared with traditional glass plate level gauge, it is safer, more reliable, more advanced and more practical. The most obvious characteristic is the complete isolation of liquid medium and indicator so it can be used safely, reliably and durably in any case. Series UHZ-99 level meter equipping with liquid level alarm, control switch can control and alarm the highest and lowest level. Product Features Polyester and high temperature ceramic shell can resist high temperature. Wide measurement range, unconstrained by vessel height. Complete isolation of medium and indicator, safe and reliable Simple structure, easy installation, low maintenance cost Anti-corrosion, no power supply and good explosion-proof performance Easy flanged connection High temperature resistence Advantages Safe and reliable to use Wide measuring range, display clearly Easy installation, no need of power supply Corrosion-proof, explosion-proof Technical Parameter Measurement range - 300-15000mm Accuracy - ±10mm Column diameter - 9mm Operating pressure - ≤10.0Mpa (>10.0Mpa customized); anti-corrosion type≤1.0Mpa Medium density - ≥0.45g/cm3 Medium density difference - ≥0.15g/cm3 Medium temperature - -20~+400℃ Medium viscosity - ≤0.4Pa·S Equipment vibration - frequency≤25Hz, amplitude≤0.5mm
