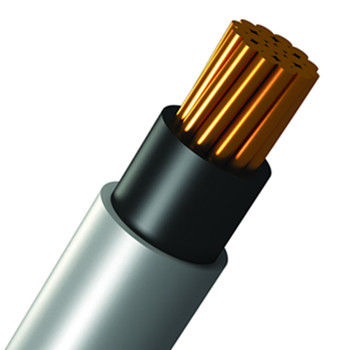

Power cable insulatedcopperindustrial
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated
- Core material
- copper
- Applications
- industrial
- Number of wire
- single-core
- Material of the insulation
- PVC-sheathed
- Nominal voltage
600 V, 1,000 V
- Temperature
70 °C
(158 °F)- Cross-section
Max.: 630 mm²
(0.98 in²)Min.: 1.5 mm²
(0 in²)
Description
Application：
This cable is primarily used for main power supply.it can also be used for industrial installations such as in cable trenches ,in cable ducts,in cable trunking,in switchgears and in power stations.this cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Operating temperature：
70℃
Voltage rating：
600/1000V
Construction：
CU/PVC/PVC,Plain annealed strand copper conductor,PVC insulated,PVC Outer sheath
Core identification：
Red or Black
Outer sheath color：
Grey or as customer order
Followed standard:
IEC60502-1,BS6346,AS/NZS5000.1
