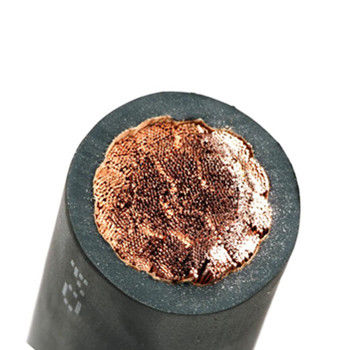

Welding electrical cable H01N2 seriespowercopperpolyester
Add to favorites
Compare this product
Characteristics
- Type
- power
- Core material
- copper
- Applications
- welding
- Material of the insulation
- polyester
- Other characteristics
- flexible, high-current
- Nominal voltage
100 V
- Temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)- Cross-section
Min.: 10 mm²
(0.02 in²)Max.: 150 mm²
(0.23 in²)
Description
Application：
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.
Operating temperature：
-20℃~85℃
Voltage rating：
100V
Construction：
H01N2-D:Class5 flexible plain annealed copper,Polyester foil or tape separator,Heat and oil resistant and flame retardant outer sheath.
H01N2-E:Class6 flexible plain annealed copper,Polyester foil or tape separator,Heat and oil resistant and flame retardant outer sheath.
Outer sheath color：
Black or as customer order
Followed standard:
IEC60245-6,BS638Part4,DIN VDE0282-6.CENELECHD22.6
