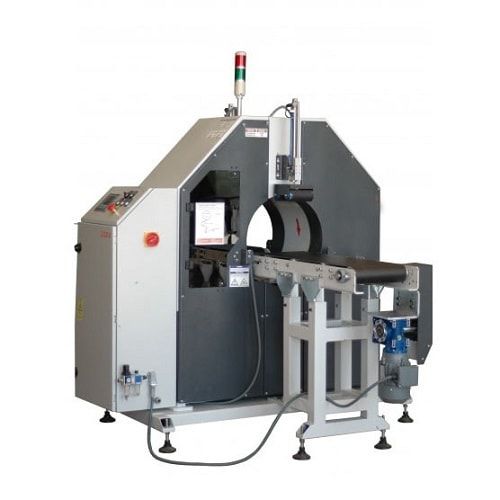

Orbital stretch wrapper E200
automaticpackagewith conveyor

orbital stretch wrapper
orbital stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
orbital
Operating mode
automatic
Product applications
package
Other characteristics
with conveyor
Width

Max.: 200 mm
(8 in)

Min.: 100 mm
(4 in)

Length

1,000 mm
(39 in)

Rotational speed

Max.: 120 rpm
(754 rad.min-1)

Min.: 10 rpm
(63 rad.min-1)

Description

The horizaontal stretch wrapper is a rotating ring machine for spiral wrapping elongated products. The machine is equipped with electro-welded mesh safety guards to protect the operator during operation. Wrapping Station: • Durable ring and strong structure for long life using. • Special driving wheels for smoothly ring turning. • Turning speed of the wrapping ring adjustable from 10-120r/min. • Soft start and stop for ring wrapping. • Wrapping position automatic reset. • Good tension control for big and small objects • Flexiable for different packing material. • Moving parts are convered by guardrail for safety operation. • Overlapping is adjustable from 10%-90% Conveyor • Conveyor for protecting the surface of the product • Automatic entrance conveyor system and outlet conveyor system. • Conveyor adjustment function. • Conveyors drive by motor with gear box. • Speed of the conveyors is adjustable by inverter. PLC control system: • PLC and program makes machine able to do automatic wrapping according your packing goal. • Photocell sensor is adopted for setting packing position. • Indicator alarms automatically when trouble occurs. Trouble can be shown automatically. • Separate control panel makes operation & maintenance easily. • Interface operation. Automatic cutter and feeder(mechanical hand): • Unmanned operation. • Automatic material feeding system. • Automatic material cutting. Technical parameter: • Package OD: 50-200mm • Package length: >1000mm • Weight:8-100kg • In feeding conveyor length: 2000mm with motor • Out feeding conveyor length: 2000mm with motor • Speed: 6~12m/min • Ring speed: 20-90r/min • Wrapping speed:5-15m/min

VIDEO
