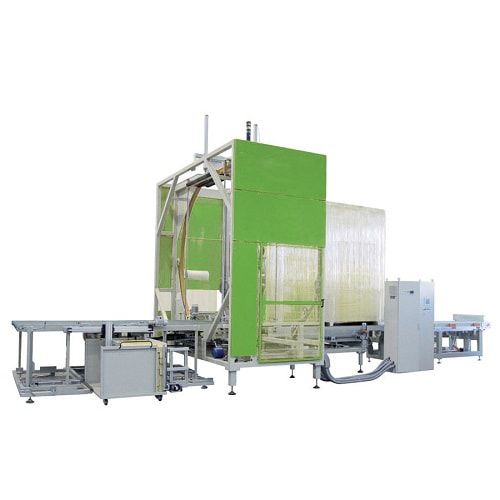

Orbital stretch wrapper E2400

automaticsheetstretch film

This is an big horizontal stretch wrapper, it is able handing the load with OD<2000mm. The automatic orbital wrapping machine specialized designed for horizontal shapes such as wooed sheets bundle, pallet load, panels bundle, furnituere,Floor board. The customized solution is avialbe for packaging goal.The products can be well-protected & sealed in good appearance with more tidy. The machine with PLC profram control is capable connecting to the packing line per automatically wrapping. Installation: The flat & hard ground with loading capacity upto 500KG/square. Not fundation required Load Wrapping Station: • Strong structure for big ring. • Double-ring & double-rub wheel devices make working more safe stable & energetic. • The position of the wheels and ring is adjustable. • Speed of the wrapping ring is adjustable by inverter app. 30r/min. • Soft start and start in wrapping. • Original position reset. • Packing material tension could be adjusted both for big and small packages. • widhth 500mm packing material adopted by material frame. • Protect guardrail and safety cover for safety operation. • Overlapping is adjustable from 10%-90% Conveyor System: • PVC belt/Roller/Chain conveyors are available for protecting the surface of the product. • Automatic entrance conveyor system and outlet conveyor system. • Conveyor heigh adjustment function. • Conveyors drive by motor with gear box per different loading. • Speed of the conveyors is adjustable by inverters. • Sensor detecting the objects for operation action. • Customized conveyor is available. Automatic wrapping protective System: • Sponge rollers for surface protection.
