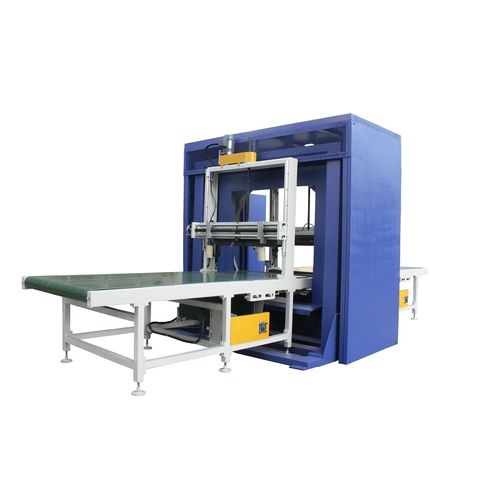

Horizontal stretch wrapper E1800
automaticdoorsheet

horizontal stretch wrapper
horizontal stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
horizontal
Operating mode
automatic
Product applications
door, sheet
Other characteristics
stretch film, with conveyor
Height

Min.: 30 mm
(1 in)

Max.: 1,600 mm
(63 in)

Width

Min.: 500 mm
(20 in)

Max.: 1,800 mm
(71 in)

Length

1,500 mm
(59 in)

Rotational speed

Min.: 10 rpm
(63 rad.min-1)

Max.: 70 rpm
(440 rad.min-1)

Description

Functions: This is a automatic horizontal stretch wrapper machine specialized for horizontal shapes such as sheets, doors, Floor board, the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping. Installation: The machine shall be mounted on flat & hard ground, where the ground load should be more than 1 ton/m2. Door Wrapping Station: • Double-ring & double-rub wheel devices make working more safe stable & energetic. • Friction between driving wheels and ring is adjustable. • Speed of the ring is adjustable by inverter. • Soft start and start. • Wrapping position reset. • Packing material tension could be adjusted. • Widely packing material adopted by material frame. • Protect guardrail for safety operation. • All moving parts in closed structure for safety operation. • Overlapping is adjustable from 10%-90% Conveyor System: • PVC belt conveyors for protecting the surface of the product. • Automatic entrance conveyor system and outlet conveyor system. • Conveyor adjustment function. • Conveyors drive by motor with gear box. • Speed of the conveyors is adjustable by inverters. • Sensor detecting the objects for operation action. • Height of conveyor adjustable. Automatic wrapping protective System: • Sponge rollers for surface protection. • Decompression system for right press. • Automatic protective devices are able to avoid products shaking in wrapping. • Pressing down device and supportive rollers for fix the packaging position. • The action time is adjustable for difference packing purpose. • Two sets of press down device. • Two sets of the right and left protect device
