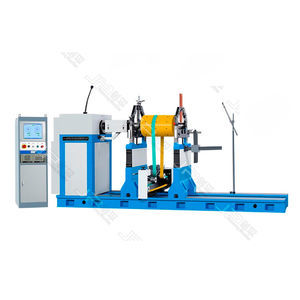

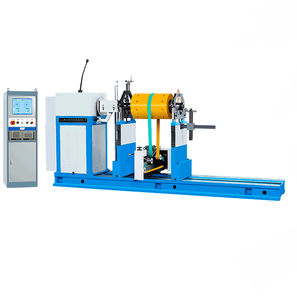

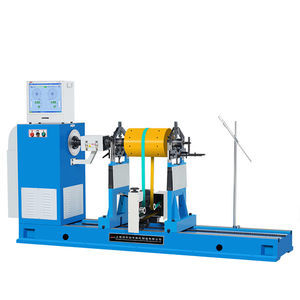

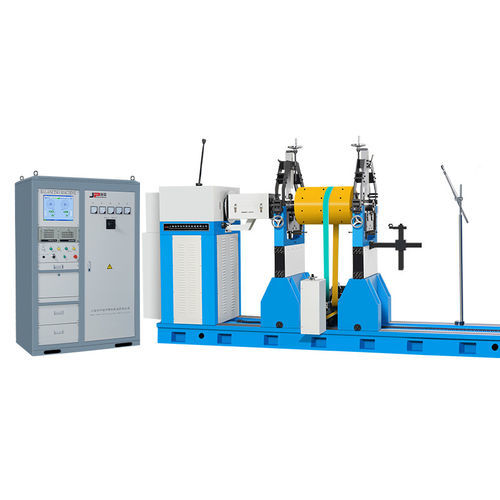

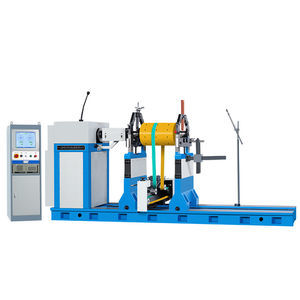

Horizontal balancing machine PHS-10000H

hard bearingmanualfor rotors

Application This machine is widely used in the unbalance detection of mechanical rotating parts of large-sized motors, rubber rollers, water pumps, centrifuges, fans, crankshafts, etc. Features Adopts the universal joint/belt drive dual drive mode. The universal joint drive can transmit more power and run more smoothly. The belt drive ensures the balancing quality and precision of the workpiece, and has the characteristics of convenient loading and unloading, fast start-up, and high work efficiency. Applicable to Large Workpieces Technical data at a glance PHS-10000H PHS-15000H PHS-20000H PHS-30000 Mass Scope of Workpiece(kg) 10000 15000 20000 30000 Max Diameter of Workpiece(mm) Φ2400 Φ2800 Φ2800 Φ3000 Distance Between Two Support Bearings(mm) Min 320 Min 450 Min 600 Min 600 Journal Diameter Scope of Workpiece(mm) Φ60~400 Φ60~400 Φ60~400 Φ80~500 Max Distance between Driving Flange and Right Bearing Support (mm) 4000 4200 5200 6000 Rotational Speed of the Main Axis(r/min) 133,255,396, 634,970 138,237,396, 644,1000 138,237,396, 644,1000 138,237,396, 644,1000 Motor Power (kw) 22 30 55 75 Torque of Universal Joint Shaft(N·m) 2250 2250 5000 7800 Length of Bed (mm) 5500 6000 7000 8000 Min Achievable Residual Unbalance Amount(emar) ≤0.5g· mm/kg ≤0.5g· mm/kg ≤1g· mm/kg ≤1g· mm/kg Applicable to Huge Workpieces Technical data at a glance PHS-50000 PHS-80000 PHS-100000 Mass Scope of Workpiece(kg) 50000 80000 100000 Max Diameter of Workpiece(mm) Φ3600 Φ4000 Φ4200 Distance Between Two Support Bearings(mm) Min 600 Min 600 Min 600 Journal Diameter Scope of Workpiece(mm) Φ80~560 Φ80~560 Φ100~650 Max Distance between Driving Flange and Right Bearing Support (mm) 7000 7500 9500 Rotational Speed of the Main Axis(r/min) 138,235,348,505, 729,955 138,235,348,505, 729,955 124,187,255,373,473,627, 853,1588 Motor Power (kw) 110 160 200 Torque of Universal Joint Shaft(N·m) 10000 15000 18000 Length of Bed (mm) 9000 10000 12000 Min Achievable Residual Unbalance Amount(emar) ≤1g· mm/kg ≤1g· mm/kg ≤1g· mm/kg 1) Frequency conversion 2) Can add to 75-180 3) Can add to 120~240 4) Stepless speed regulation - Application: Unbalance detection for large rotating parts - Dual drive mode: Universal joint and belt drive - High power transmission and smooth operation - High balancing quality and precision - Convenient loading/unloading, fast start-up, high efficiency - Applicable for large and huge workpieces
