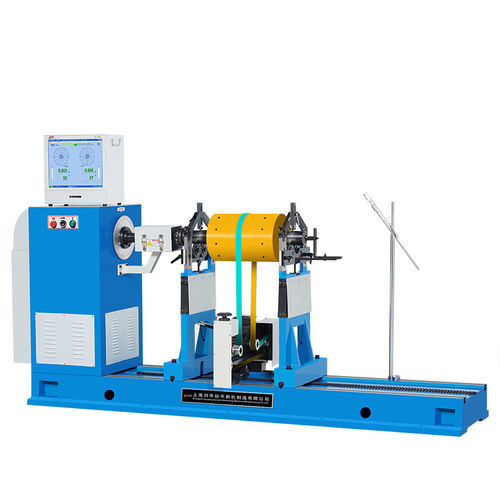

Horizontal balancing machine PHS-300H

hard bearingmanualfor rotors

Application This machine is widely used in the unbalance detection of mechanical rotating parts of small-sized motors, rubber rollers, water pumps, centrifuges, fans, crankshafts, etc. Feature Adopts the universal joint/belt drive dual drive mode. The universal joint drive can transmit more power and run more smoothly. The belt drive ensures the balancing quality and precision of the workpiece, and has the characteristics of convenient loading and unloading, fast start-up, and high work efficiency. - Applicable to small workpieces Technical data at a glance - Mass Scope of Workpiece: 160kg (PHS-160H), 300kg (PHS-300H), 500kg (PHS-500H) - Max Diameter of Workpiece: Φ1000mm, Φ1220mm, Φ1500mm - Distance Between Two Support Bearings: Min 60mm - Journal Diameter Scope of Workpiece: Φ15~75mm (can add to 75-180mm) - Max Distance between Driving Flange and Right Bearing Support: 1500mm - Rotational Speed of the Main Axis: 600, 1095 r/min (stepless speed regulation) - Motor Power: 3kW (PHS-160H, PHS-300H), 4kW (PHS-500H) - Torque of Universal Joint Shaft: 60 N·m - Length of Bed: 2500mm - Min Achievable Residual Unbalance Amount: ≤0.5g·mm/kg
